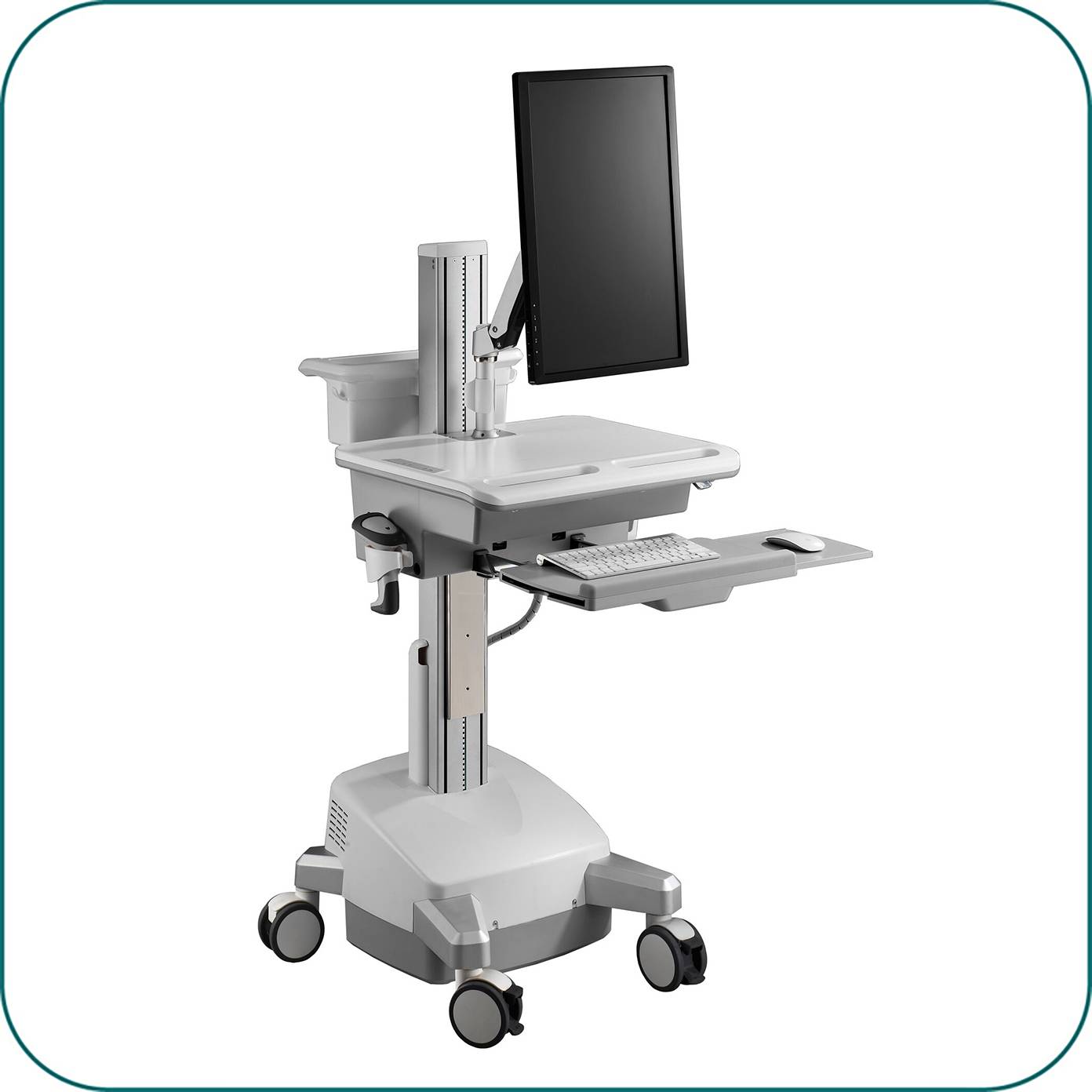

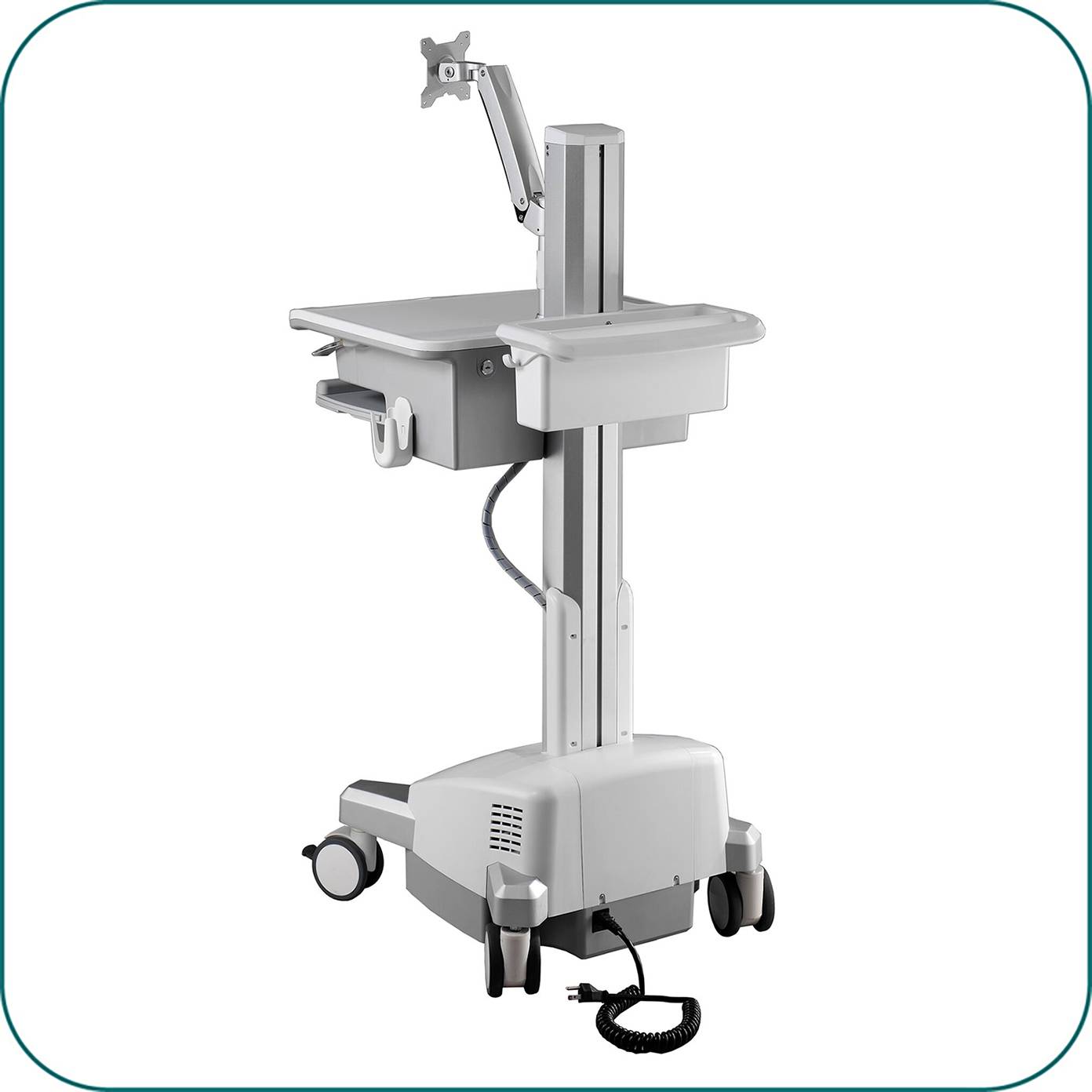

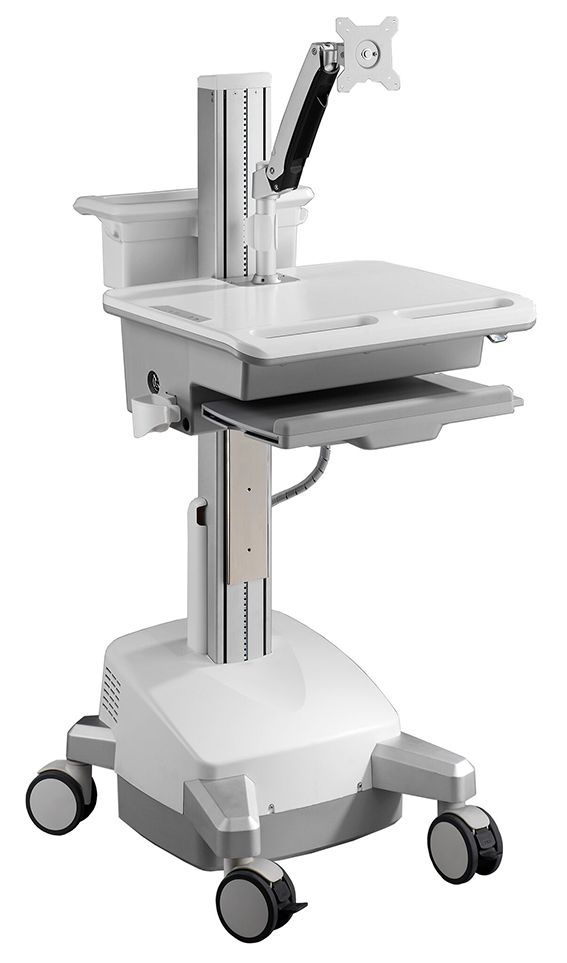

Powered Mobile Medical Cart with Manual LIFT
-Single Monitor Arm type

CMR01

Aavara is pround to present the Powered Mobile Medical cart series.  CMR01 is equipped with battery, UPS Charger and Manual LIFT for max. efficiency in Healthcare environment.
CMR01 is a state-of-the-art and ergonomic design of Powered Mobile Medical Cart to surpass the traditional ironed cart. It supports 17''~24'' display and Modularized CPU Holder/ Storage space, manual lift to adjust the height.

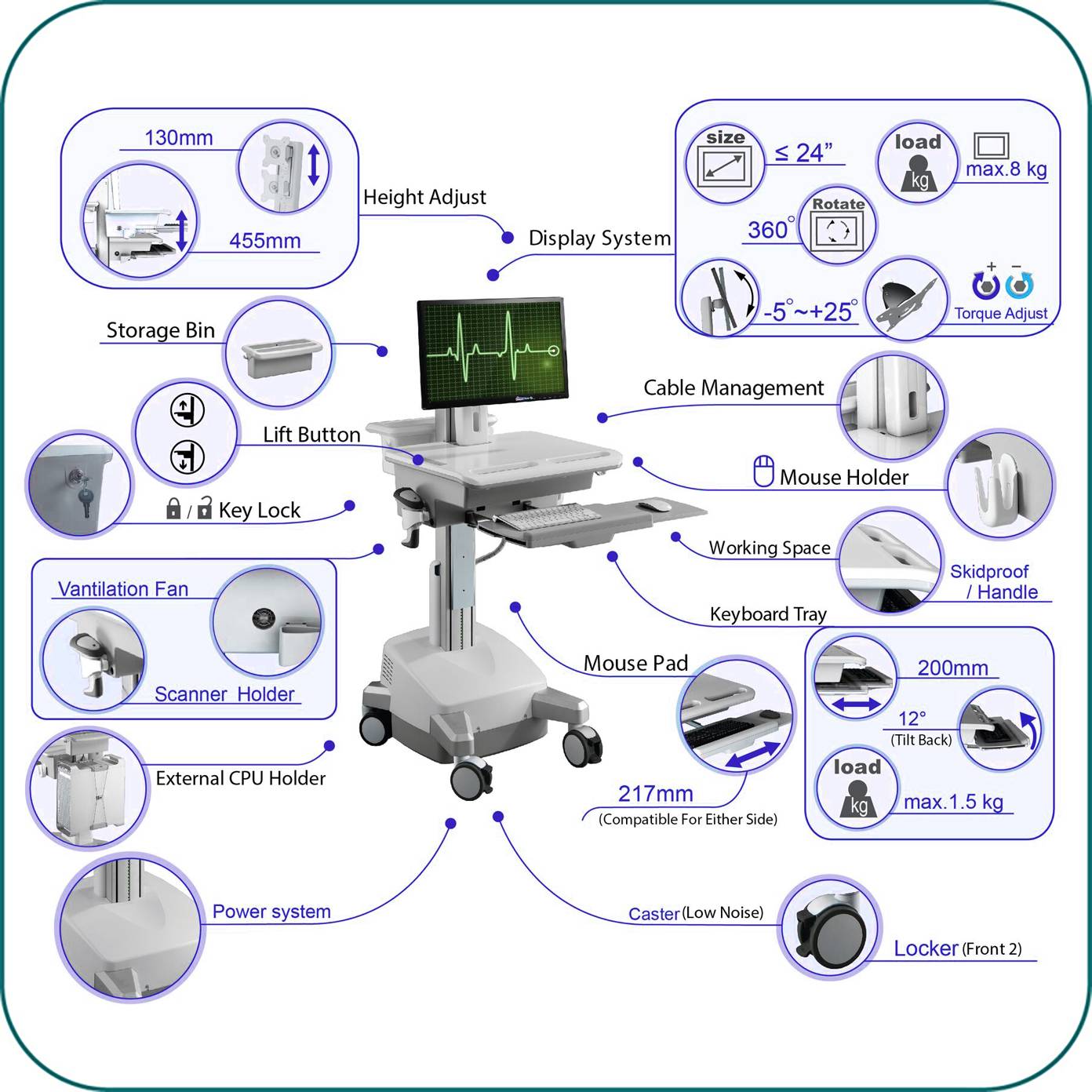

Features tilt, swivel, rotation of the display and height adjustment range up to 455 mm/ 17.9".
It facilitates the workflow and enhancing the max. efficiency with all fucntions in one stand-alone cart. Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of powered equipment in your working space.

Trolley Cart Main Page

Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 69.5 kg /152.9 lbs
Combinated Accessories Expansion: YES
Packaged Dimension: 80x64x145cm


Power System

Input Voltage:
AC-in 120V 60 Hz or 230V 50 Hz
Batteries: by request
AC-in Power Outlet: IEC Compliant
Cables: Pre-routed

User Interface

Control Panel:
LED Display - including Power/Status Indicators
Keyboard Light: 4 LEDs under the Desk Handle
Battery Control Software: Yes


Features

Swivel:+/-90°
Tilt: -20° ~ +90°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

VESA: 100x100mm / 75x75mm
Display Type: Single Monitor Arm
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 10 kg /22 lbs

Height Adjustment

Height Adjust Range: 315 mm /12.4”
Tension Torque Adjustment: Yes
Cable Management: Yes



Open Workspace

Dimension: 482 x 261 mm /18.98" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment

Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES
External CPU Holder: YES

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"

Caster

Caster No: 4 (front 2, Rare 2)
Locking / Brake: Front 2
Low Noise: Yes

LIFT

Lift Handle: Yes
Height Adjust Range: 500 mm / 19.7"
Tension Torque Adjust: NA

Cerificate

RoHS/REACH Compliance: Yes
