Mobile Medical Cart
-Dual Monitor type

CND01

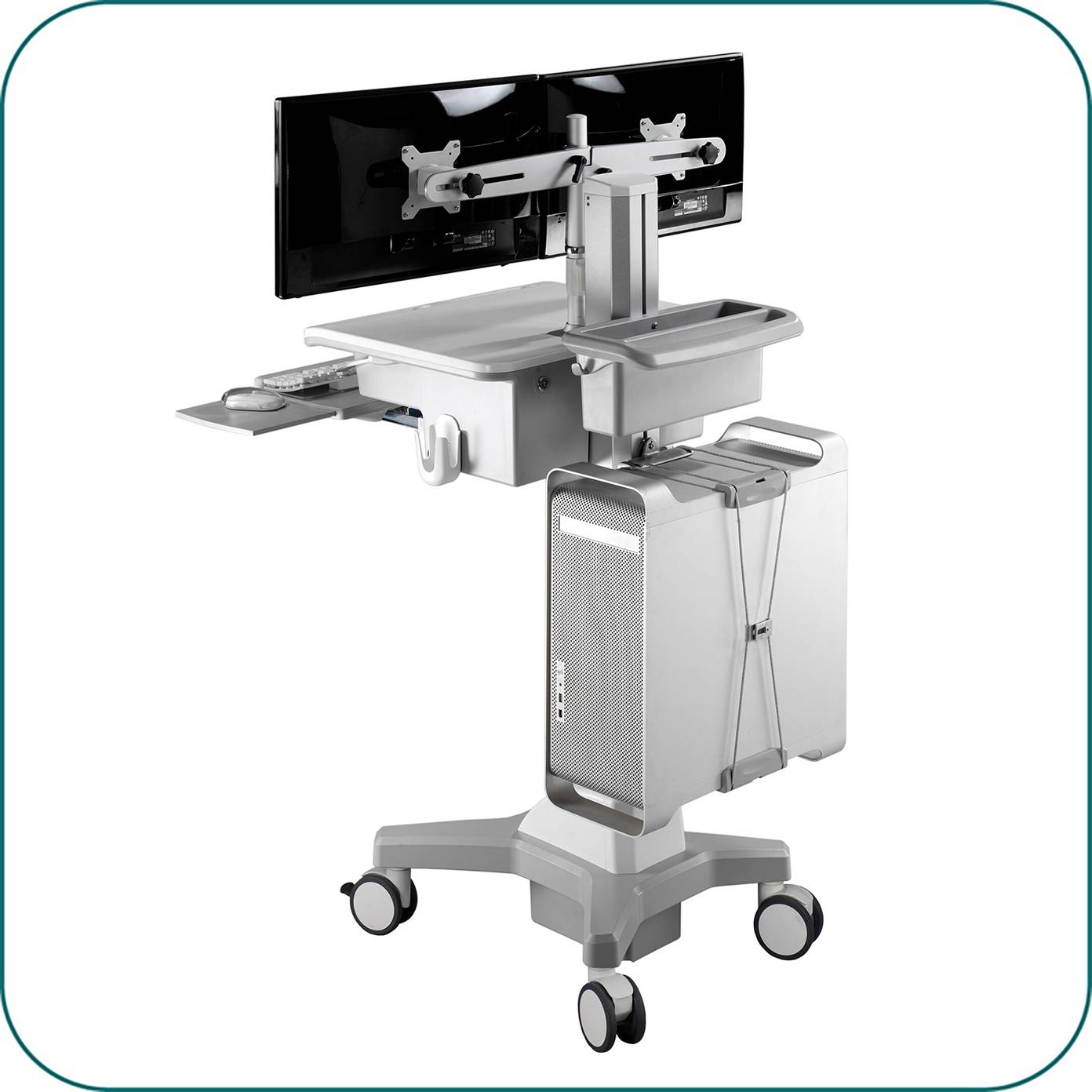

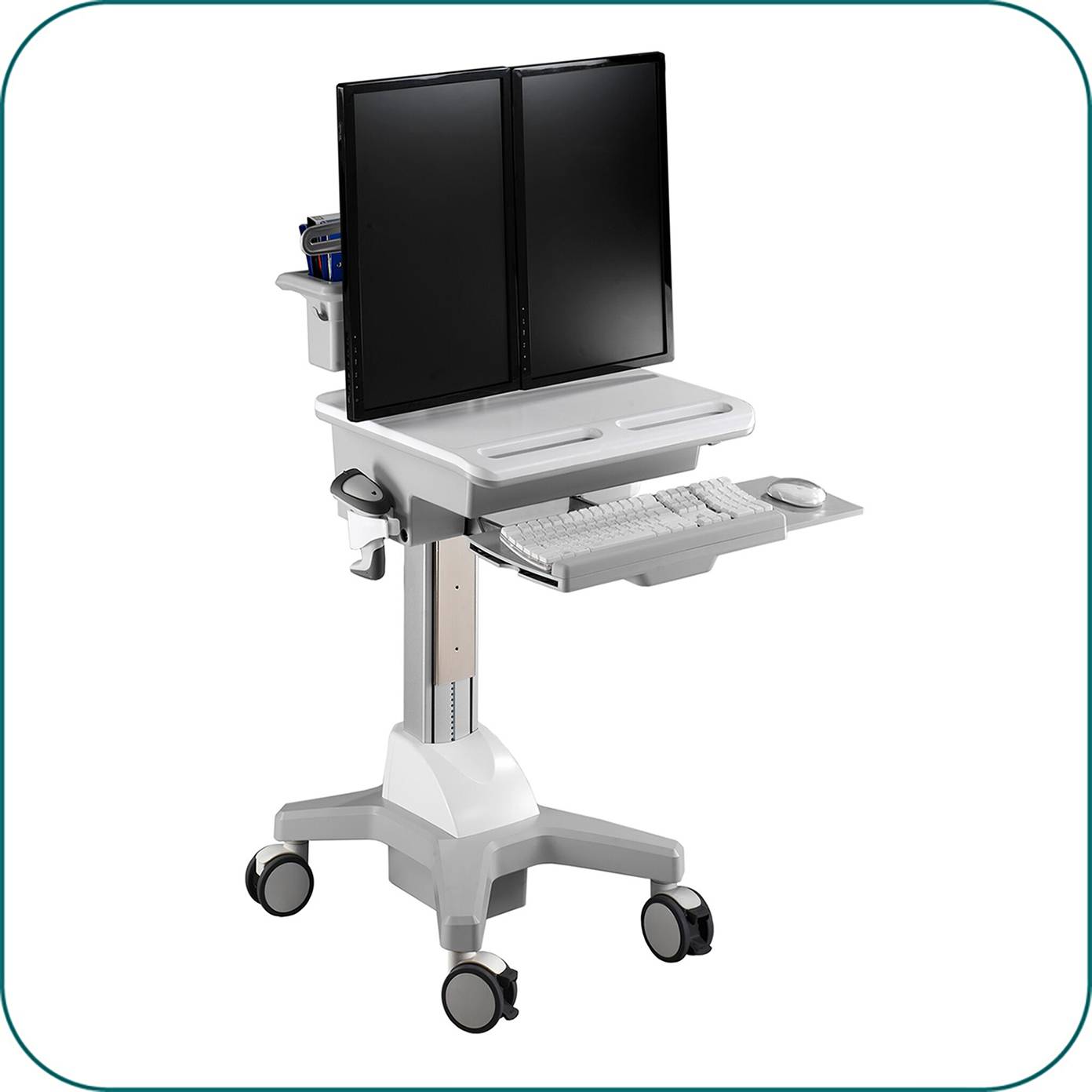

Aavara CND01 is the Mobile Medical cart, equipped with Dual display mounts 15"-24" and modularized CPU Holder/ Storage space/ Work station kit. It designed with manually lift to adjust the heights and working surface embedded with Storage compartment, key lock and ventilation

Features tilt, swivel, rotation of Dual monitors and height adjustment range up to 500 mm / 19.7" , furthermore it comes with ExperTorque™ technology for easy adjustment of the screens hinged by its weight.

It facilitates the workflow and enhances the max. efficiency with all fucntions in one stand-alone cart. Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of equipment in your working space.

Trolley Cart Main Page

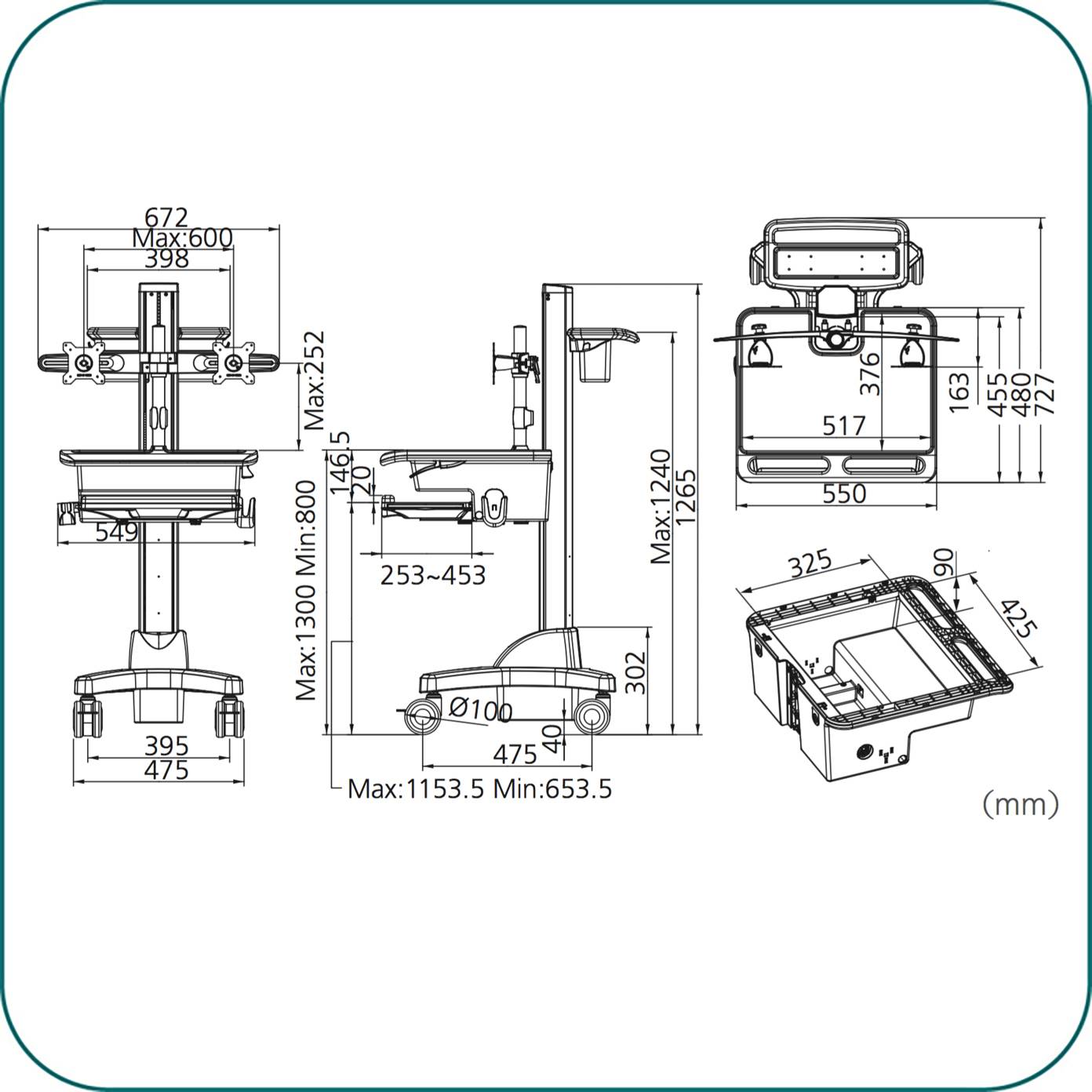

Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 69.5 kg /152.9 lbs




Combinated Accessories Expansion: YES



Packaged Dimension:

DIM: 80x64x145cm

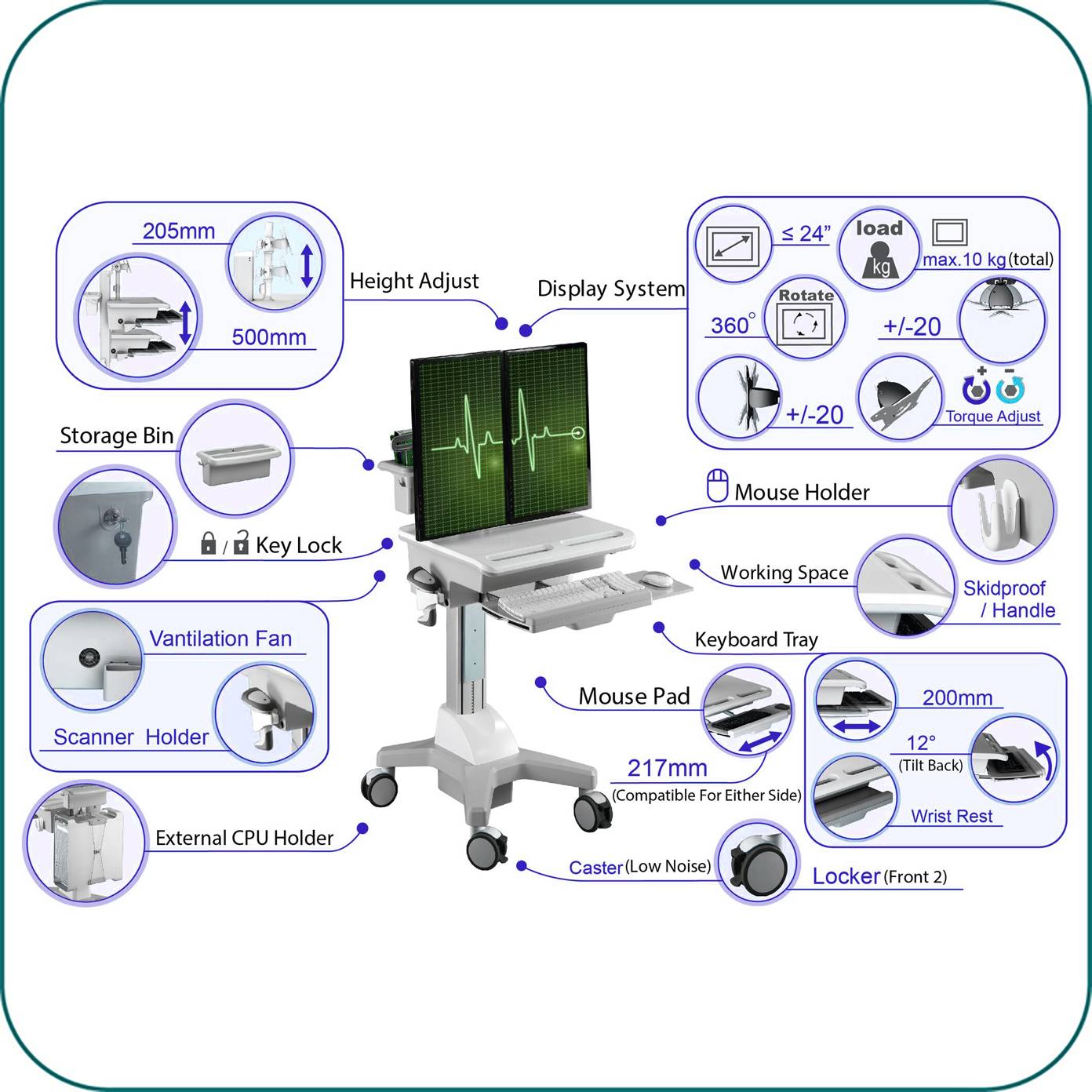

Features

Swivel:+/-20°
Tilt: +/-20°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

VESA: 100x100mm / 75x75mm
Display Type: Dual Monitor
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 10 kg /22 lbs (For total two displays )

Height Adjustment

Height Adjust Range:205 mm /8.07"
Tension Torque Adjustment: NA
Cable Management: Yes



Open Workspace

Dimension: 517 x 261 mm /20.35" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment

Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES
External CPU Holder: YES

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"

Caster

Caster No: 4 (front 2, Rare 2)
Locking / Brake: Front 2
Low Noise: Yes

LIFT

Lift Handle: Yes
Height Adjust Range: 500 mm /19.7"
Tension Torque Adjust: NA

Cerificate

RoHS/REACH Compliance: Yes
