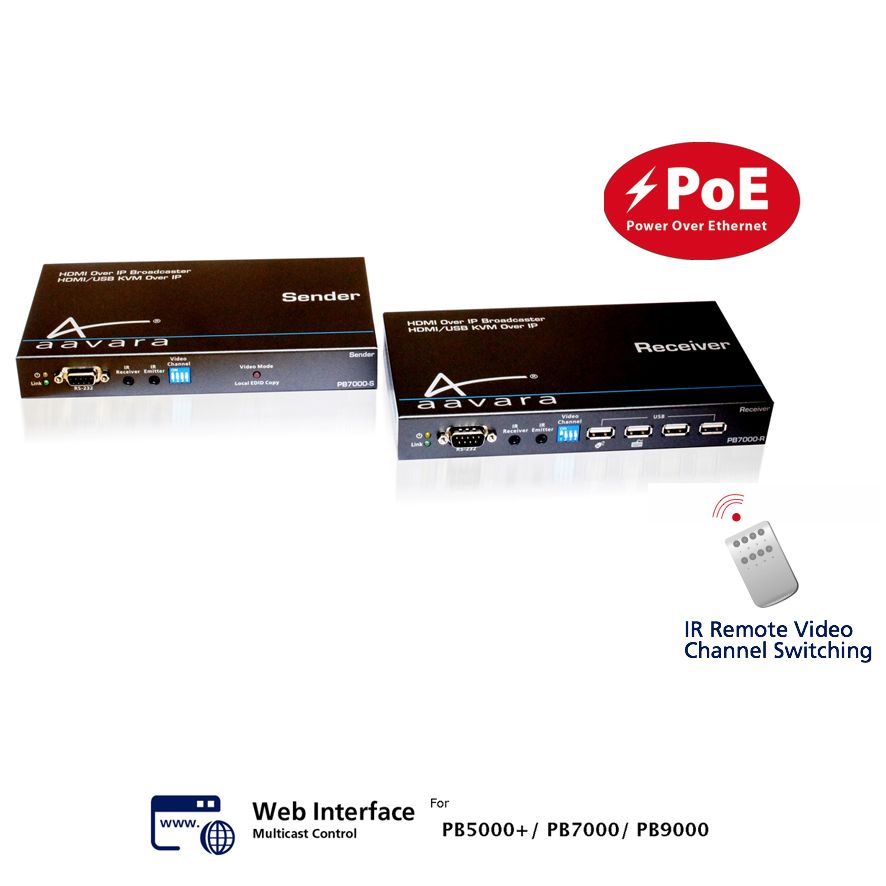

PB7000

HDMI over IP with Aavara AV Master Control S/W

New PB7000M PoE HDMI/KVM over IP is a great HD video distribution solution for Residential and Signage deploy, integrating Aavara AV Master Control Software and 3rd Party Control drivers for centralizing control.

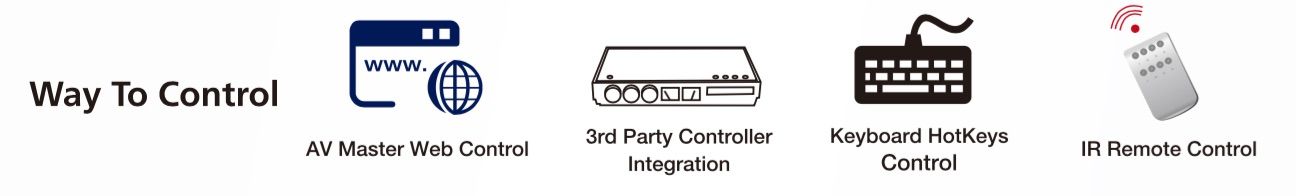

- Aavara AV Master web interface
- Keyboard Hotkeys
- IR remote control
- We provide driver for easy residential integration with major brand controllers. Control4, AMX, RTI, Crestron and Elan g! integration.

PB7000 fully meets the high demand of Residential application as Home AV matrix w/ 7.1 ch Audio and 3D support. 60 fps video which is running very smoothly in Sports program video. And ideal for DOOH in Commercial Installation which demand Higher Video Quality, Analog Audio Line out to support Active Speaker for public area, and RS-232 to control the Displays. In addition, HD AV KVM w/ HighSpeed USB connection available.

free website builder

FEATURES

• Built-in Aavara AV Master Web Interface for easy central AV Switching Control
• Support 3rd Party Control System: Control4, AMX, RTI, Crestron and Elan g! integration
• Excellent Solution for HDMI USB KVM & Residential/Commercial over Ethernet Network
• Unicast, Broadcast & Multicast HDMI, USB, RS-232 & IR Over Gigabit Ethernet
• VGA Out on Receiver for Non-HDCP Video Pass-Thru
• Video Resolutions Up to 1080p Full HD, 720p 3D and 1920 x 1200 (WUXGA)
• Lossless LPCM, DTS® & Dolby® Audio Up to 7.1 ch Audio Pass-Thru
• Analog Audio In/Out for Extenal Active Speaker
• 4 x High Speed USB 2.0 Ports on Receiver w/ Keyboard/Mouse Emulation
• Dip Switch for up to 16 Video Channel Multicasting
• Easy to Use IR Remote Control Video Channel Switching
• Power Over Ethernet

SPECS

• HDMI Spec.:v1.3 Compatible
• DVI Spec.:v1.0 Compliant
• HDCP Spec.:v1.1/ 1.2 Compliant
• HDMI Video Resolution:Up to1080p @ 60Hz, 720p 3D
• PC DVI Input Resolution:Up to1920x1200 @ 60Hz
• HDMI Audio In/ Out:Up to 7.1ch LPCM, DTS, Dolby®
• Distance:Point to Point 100M unlimited within LAN
• USB Extension:USB 2.0 Type A ports x 4 Receiver, USB 2.0 Type B ports x 1 Sender
• RS-232 Baudrate:300~230, 400bps, Default 115,200bps
• IR Control Pass Thru:20~60KHz, Two-way IR Pass- Thru
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:5W
• Power Adapter:DC 5V/2A
• Material:Metal
• Dimension (LxWxH):197x115x28mm
• Weight:450g
• Optional Accessory:Mounting Kit (MK-100), Remote, IR Emitter/ Receiver

HDMI/KVM Distribution Solution features:

Aavara® PB7000 HDMI/KVM Distribution Solution features centraliztion of 3rd Party Controller integration, ideal for best AV Matrix switching for commercial and residential application.......
Learn More

1

1st Quality

2

2 Year Warranty

3

3rd Party Controller Integration

60

60 fps video performs very smoothly in Sports program video.

Mobirise

3rd Party Controller Integration

Major Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more.


Mobirise

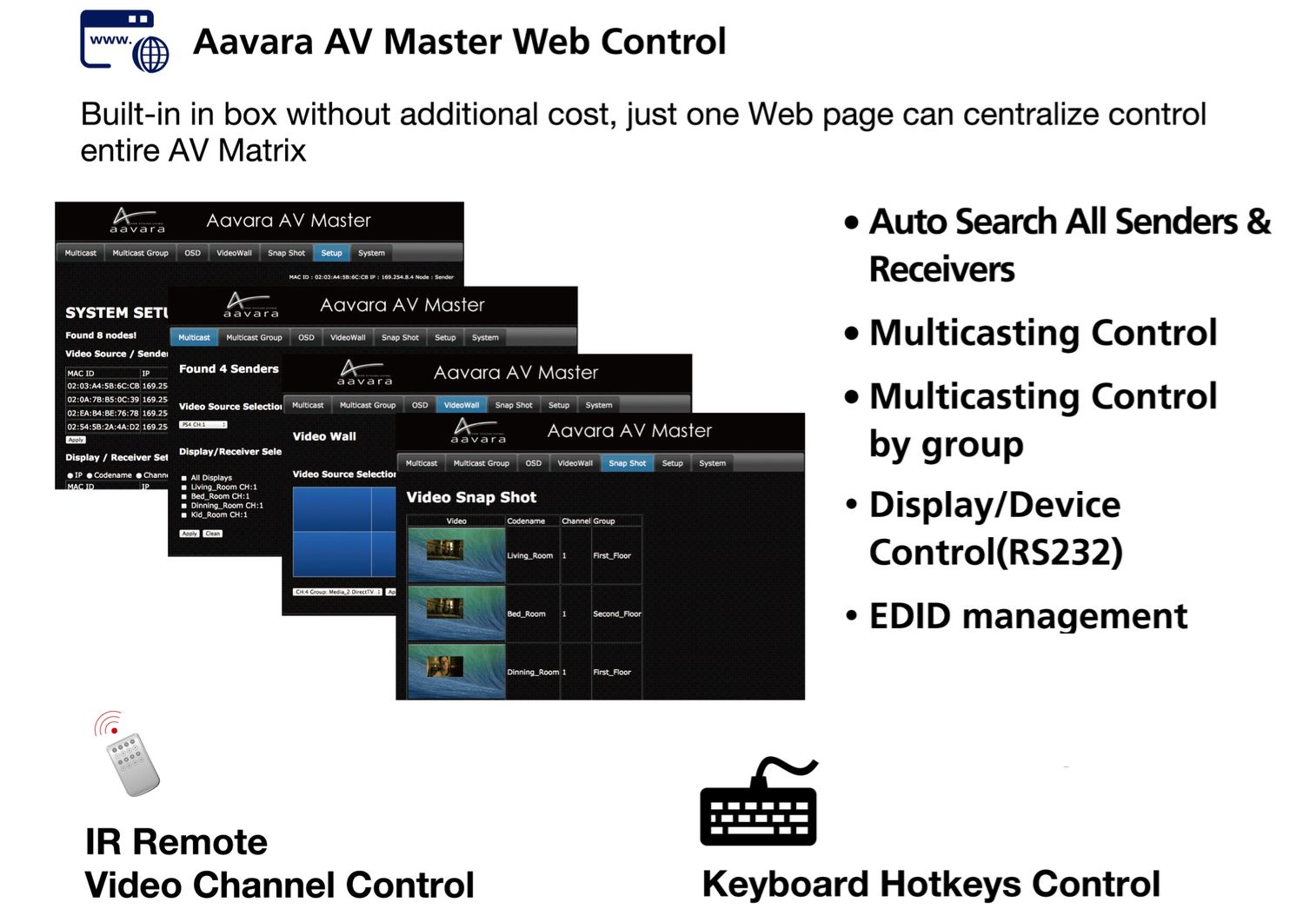

Aavara AV Master Web Control

Full function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire HDMI Over IP network.


Mobirise

HDMI AV Matrix

Fully meets the high demand of Residential application as Home AV matrix with Dolby Atmos, DTS X support. HDMI 60 fps video is running very smoothly in Sports program video.

Mobirise

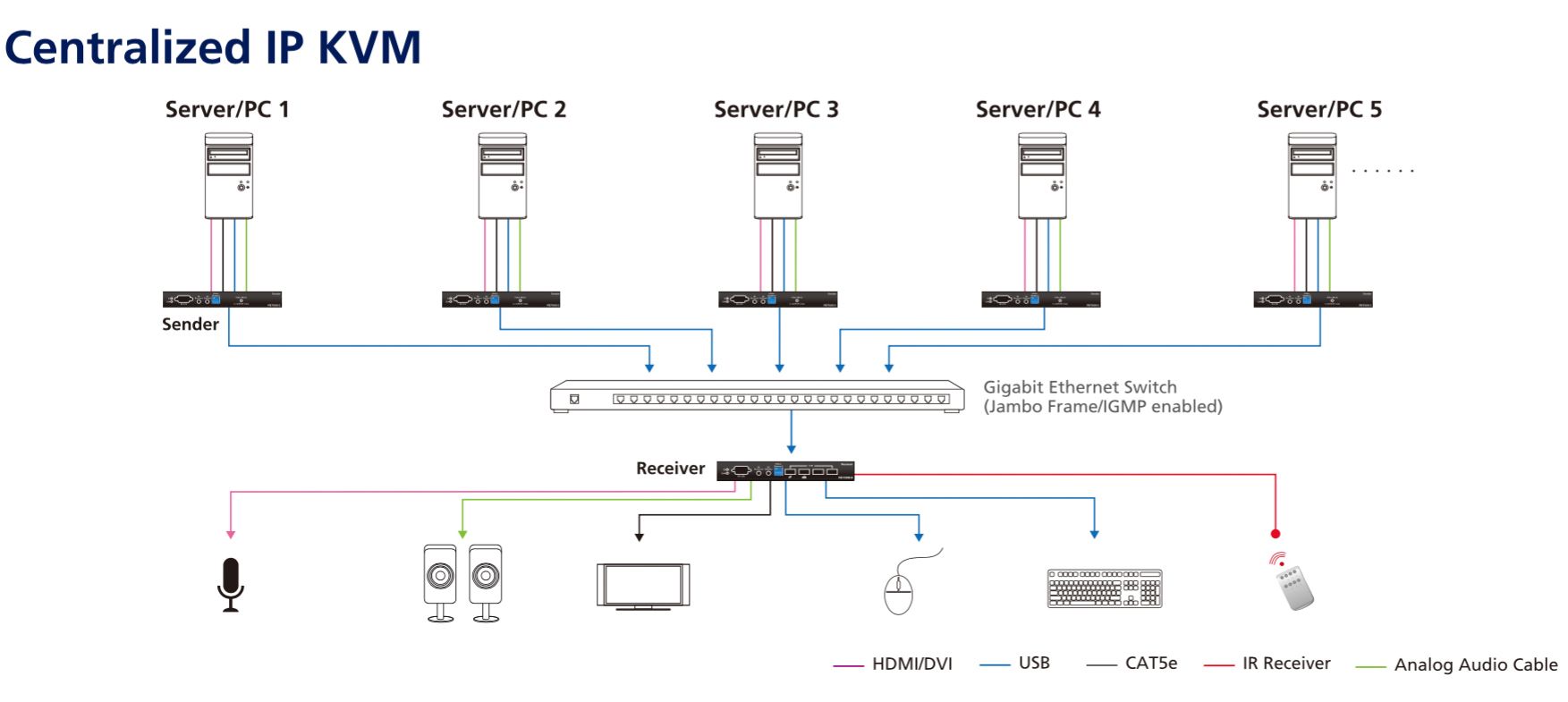

USB IP KVM

Great KVM solution provides USB 2.0 Pass-Thru, Keyboard Hotkeys Control & Latest KVM Keyboard/Mouse Roaming across different PC/Server/channel. (coming soon).
