PCE122IR

HDMI Over Coax w/ IR Pass Thru

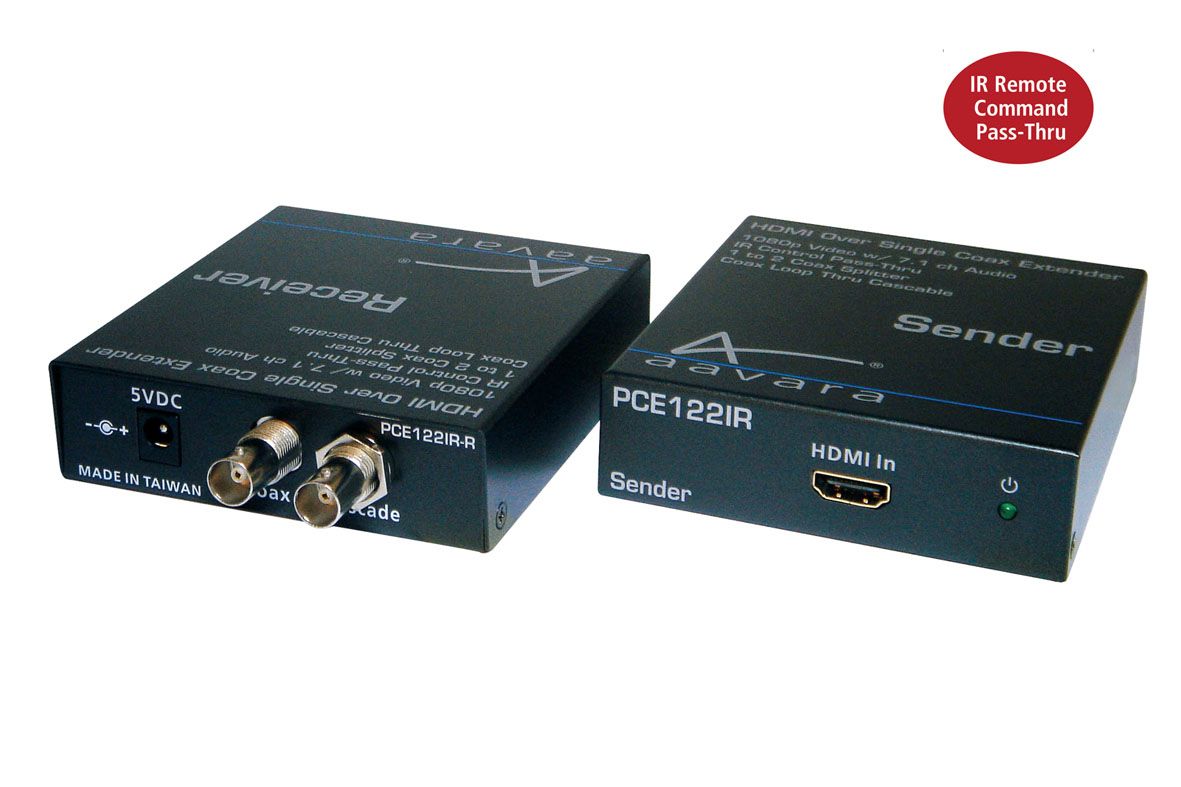

Aavara® HDMI over Single Coaxial Extender with IR Remote Command Pass Thru, featuring 120M HDMI 1080p video resolution, furthermore, co-existing with original PCE122 . Again, simplify system installations.

PCE122IR HDMI Over Single Coax which added 38 KHz IR Control Pass-Thru from PCE122IR-R Receiver/TV or Display to PCE122IR-S Sender/Video Source Device by using IR remote control to control Video Source Device remotely.

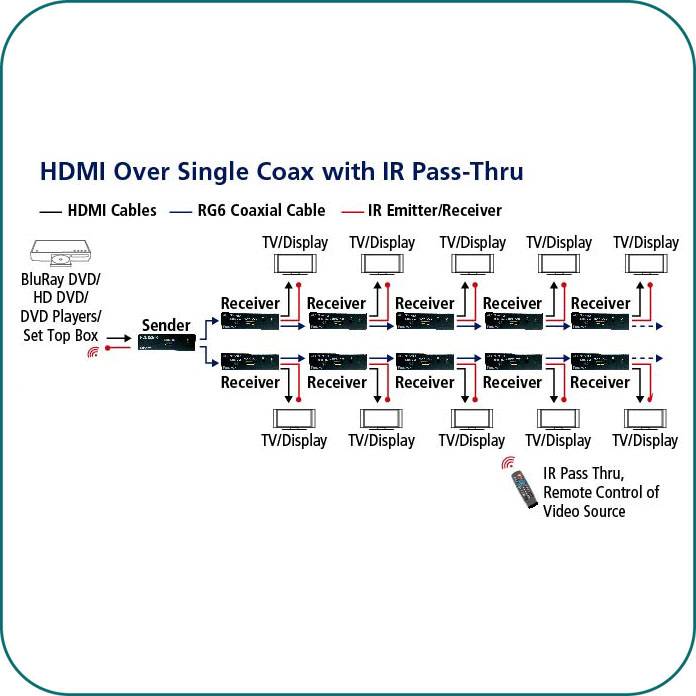

The PCE122IR also boasts built-in 1 to 2 Coaxial Splitter in Sender and One Coaxial Cascade output in Receiver which brings greater flexibility as it supports up to 5 layers Cascadable across 600M 1080p video, for 10 connected TVs, displays or projectors or more. The BNC connector design also ensures a solid coaxial cable connection for vibration and shock resisting.

HDMI Over Coax w/ IR Pass Thrufeatures:

Aavara® PCE122IR HDMI over Single Coaxial Extender with IR Remote Command Pass Thru, featuring 120M HDMI 1080p video resolution. easy to install.

1

1st Quality

2

2 Year Warranty

2

Built-in 1 to 2 Coaxial Splitter in Sender

38

38 KHz IR Control Pass-Thru

FEATURES

• Broadcast-grade Coax transmission with IR Remote Command Pass-Thru, designed for Ultra High Quality Video
• 1080p 120M long distance by Single RG6U Coax cable, indoor and outdoor deployment
• Sender Built-in 1 to 2 Coax Splitter, optimized for connecting two Receivers
• Receiver Built-in One Coax Out for Multi-layers Cascade, Ultra Long distance 1080 Video Transmission and Multiple TVs/ Displays/Projectors connections
• Built-in 1 to 2 Coaxial Splitter in Sender and One Coaxial Cascade output in Receiver for great extension flexibility
• F to BNC Adaptors Included for Coaxial Cable with F Connector Convenience
• BNC connector designed for solid coaxial connection
• HDMI v1.3b, HDCP Compliant
• Hassel free plug-n-play, install in sec
• Compatible with Aavara PCE122

SPECS

• HDMI Spec.:1.3b Compliant
• HDCP Spec.:1.2 Compliant

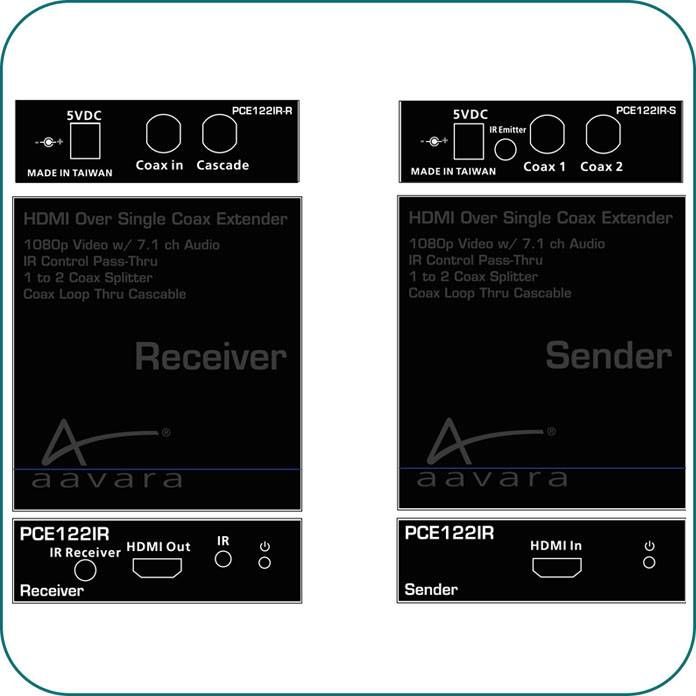

• Input Connector-Sender:COAX BNC x 2 (1 to 2 Splitter)
• Output Connector-Receiver:HDMI Type A x 1, COAX BNC x 1 (Cascade Out)
• Video Bandwidth:2.97Gb/s data Rates
• HD Input Resolution:HD Video input 720p, 1080i, 1080p
• PC DVI Input Resolution:1280X720, 1920X1080@ 50/60 HZ STANDARD TIMING
• Output Resolution:HD 720p, 1080i, 1080p
• Max. Distance:120M by High Quality Dual or Quad Shielded RG6U coaxial cable with 3 GHz certificate
• Dimension:92.4x 117.8x29mm
• Weight:249g
• Operating Temperature:+0ºC~ +40º C (+32ºF~104ºF)
• Operating Humidity:10%~ 85% (Non-condensing)
• Storage Temperature:-20ºC ~ +60º C (+20º F~140º F)
• External Power Supply:5VDC/ 2A
• Power Consumption:5Watts (Max)
• Package Content:HDMi Over Single Coax Sender & Receiver, 5V DC Adapter, IR Jack, Usermanual, F to BNC Adapter *2pcs
