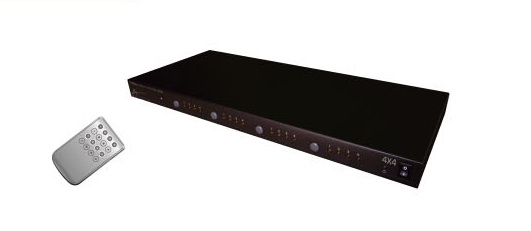

  PM4X4A
HDMI MATRIX 4X4 w/ RS232 Control

Aavara® PM4X4A 4x4 HDMI Matrix supports HDMI v1.4 3D Video Format, uncompressed resolution up to 1080p including multi-channel digital audio signal. Four inputs transmit high definition digital video and audio signals to four displays in selection among. It is compliant with Blu-ray, DVD players, media players and satellite set top boxes to any HDMI compatible display.

Sources are accessible at all times to any display when operating with the IR remote and RS-232 remote control. 4 type Matrix Mode Dip switch which can adjust Matrix split rule to support all kind of installation configurations for both Commercial and Residential application. PM4X4A matrix switching allows maximum versatility for integrated systems.


Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  HDMI Specification 1.3b Compliant, with HDMI v1.4 3D Video Format support
  RS-232 control by PC or other RS-232 control panel for system integration
  Matrix Mode Dip switch can adjust Matrix split mode to following rule:
  - Mode 1: Greatest Common Video Resolution & Audio Format made sure all displays will show video correctly
  - Mode 2: Maximum Video and Audio output from Video source
  - Mode 3: Follow Output 1 Display, Video Source will handshake with Output 1 Display only and rest display follow
  - Mode 4: Follow Output 1 Display, and Turn Off Deep Color. Video Source will handshake with Output 1 Display only and rest display follow. Which will reserve HDMI bandwidth for high quality multi-channel Audio and improve long distance HDMI transmission stability
  Support HDMI 36-bit Deep Color & x.v.Color wide color gamut
  Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
  Freely to select one of four HDMI signal inputs by each Output displays/TV/projectors independently
  Audio support Dolby® TrueHD & DTS-HD™ lossless 7.1 digital surround & Lip Sync
  Plug-and-play. Installs in seconds
  PRODUCT SPECIFICATION
  HDMI Spec.:1.3b Compliant
  DVI Spec.:1.0 Compliant
  HDCP Spec.:1.2 Compliant

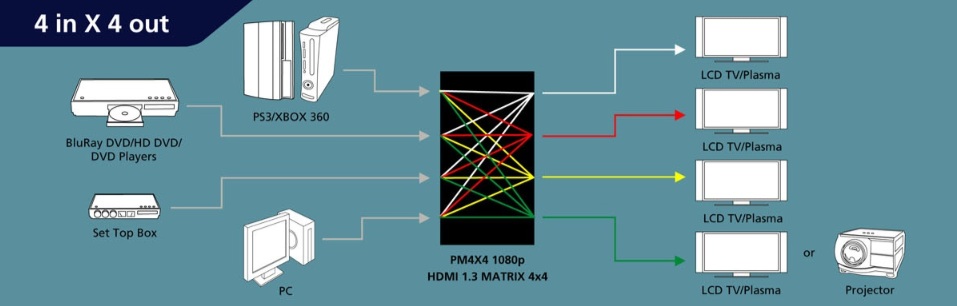

  MATRIX 4 input X 4 output:Transmit same source or FOURf different sources simultaneously
  Operation temperature:+5ºC to +35ºC
  Storage temperature:-20ºC to +60ºC
  Humidity Range:5% to 90% RH
  Signal Rate:6.75Gbps
  Power Consumption:5W
  Video Bandwidth:225 MHz
  Single Link Range:Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
  Cable Length:5M (In and Out respectively)
  Dimension:390(W) x 163(D) x 27(H) mm
  Net Weight:1.7kg/3.75lbs
  EAN Bar Code:4712818572681
  Q'TY per Carton:5
  Package Content:1080p HDMI MATRIX 4X4, Remote Control, 5V DC Adapter, Usermanual
