HDMI OVER IP MULTI-CASTING

Multi-Casting Signage/DOOH Can Be So Easy by Aavara PB5000 HDMI Over IP

Aavara starts to deliver new PB5000 HDMI over IP which is a great HD video distribution solution for DOOH and Signage deploy. It delivers stunning Ultra High Quality 1080p HDMI Video broadcast over IP network. Not only does it offer smooth vivid 1080p full motion video with CD quality level audio, but it also ensures that crystal crisp images and sharp small text clarity will give the viewer the maximum visual presenting impact and easy clear reading. Fully leveraging the mature inexpensive Gigabit Ethernet network switch in market, PB5000 can supports Point to Point (with IR pass function), Point to Many Broadcasting, and Multi-Casting which multiple video sources with PB5000 Senders video streaming to multiple TVs/Displays/Projectors with PB5000 Receiver. Multi-casting can be done by Managed Gigabit Switch with 802.1Q VLAN function which provide control remotely and more video source/senders allowed.

The New Innovation Easy Video Channel matching technology which only need Low Cost Unmanaged Gigabit Switch to archive Mutli-casting .
Do not mind unfamiliar network setting and switch management!
Just adjust and matching video channel setting (simple dip switch) on each sender and receiver, 1 to 1, 2 to 2, ..., just that Easy, Plug n Play.

Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  1080p Ultra High Quality Video transmission and Up to 16 Groups Multi-Casting
  Flexible and scalable HDMI 1080p broadcasting with Gigabit Ethernet LAN

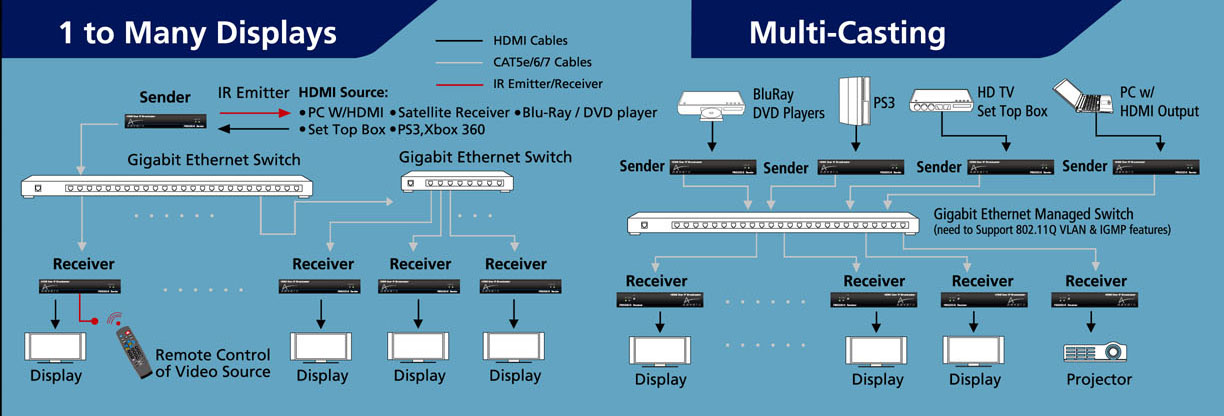

  1 to 1, 1 to many & multi-casting broadcasting architecture, adding more displays without adding LAN bandwidth loading
  Multi-Casting group with Gigabit Ethernet managed switch (required 802.11Q VLAN & IGMP function) support, Up to 16 multi-casting group support
  16 sets C class IP Dip switch configuration on both Sender & Receiver for easy Multi-Casting group matching
  IR Pass-Thru on 1 to 1 extender configuration
  PRODUCT SPECIFICATION
  HDMI Spec.:1.3 Compatible
  DVI Spec.:1.0 Compliant
  HDCP Spec.:1.1/ 1.2 Compliant
  Sender Connector: Power Adapter in, RJ45, IR Emitter Connector, HDMI
  Receiver Connector:Power Adapter in, RJ45, HDMI
  Receiver- HDMI Audio Outp:Stereo L/R, 16bits, 48Khz
  HDMI Video Resolution:480i/p, 576i/p, 720p, 1080i/p
  HDMI PC Resolution:Up to1920x1200 @ 60Hz
  Extender Mode CAT5e Lengt:100M
  Extender Mode:Sender to Receiver by CAT5e/6/7 Cable directly
  Broadcaster Mode:Sender to Receiver via LAN (Local Area Network), One Sender to Many Receivers(Display/ TV/ Projector)
  Broadcaster Mode Length:Unlimited within LAN (Local Area Network)
  IR Control Pass Thru:IR Emitter to use infra Red Remote control of video source equipment(connected to sender) to control from Receiver side
  1 to Many Broadcaster Mod:IR Control Pass-Thru will work only with first power on PB5000 Receiver as Remote Console
  Operating Temperature:0-40ºC
  Storage Temperature:-20~50ºC
  Humidity Range:5%~90%RH
  Power Consumption:5W
  Power Adapter:DC 5V/2A
  Material:Metal
  Dimension:165x116x28mm
  Product Weight:325g
  Optional Accessory:Mounting Kit (MK-100)
  Package Content:1080p HDMI Broadcaster Sender & Receiver, 5V DC Adapter, Usermanual, IR Emitter Cable
  INSTALLATIONS

  DOWNLOADS
  User Guide

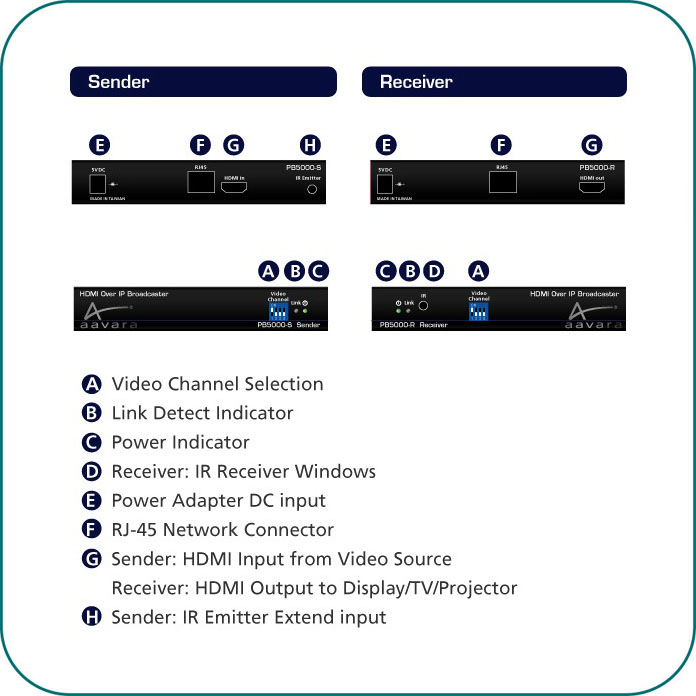

  Dimensional Illustrations

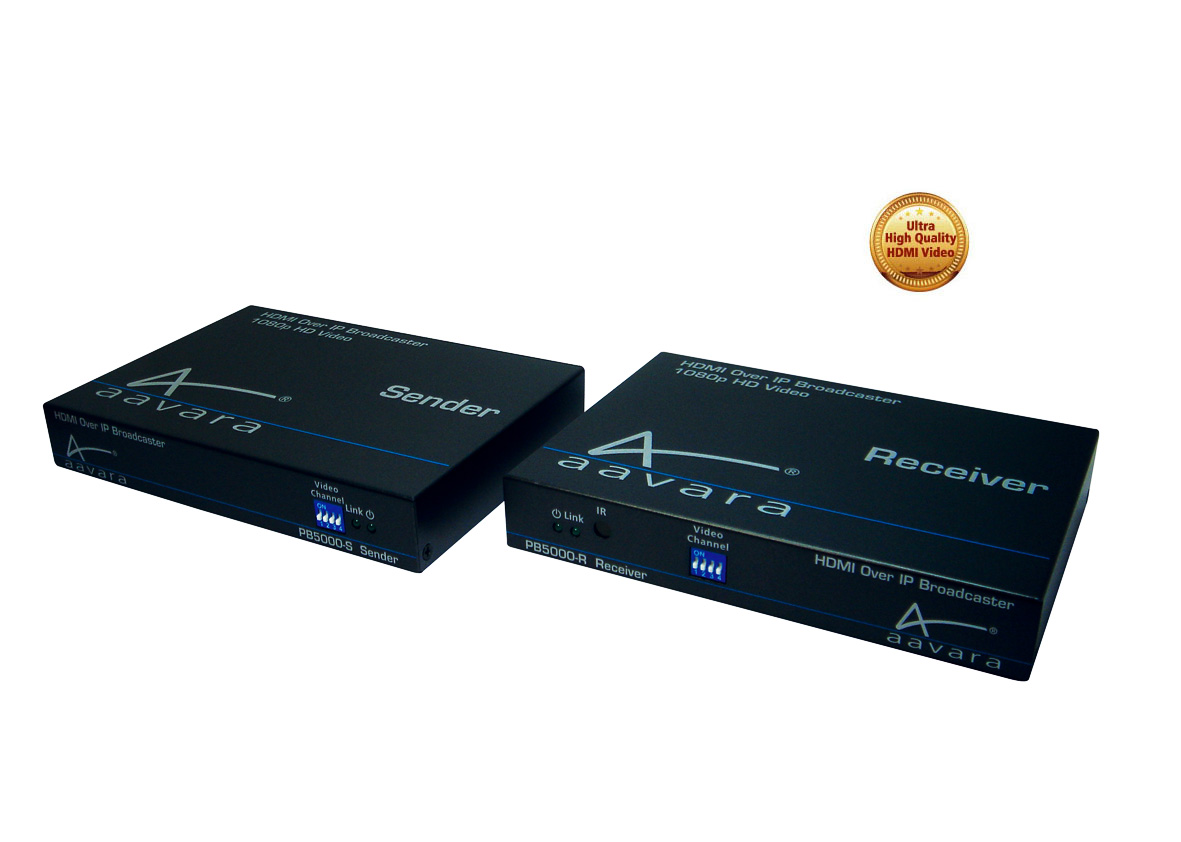

  Product Image
  Package
