  PS128A
HDMI 1080p Splitter 1:8 w/ RS 232

Aavara® PS128A is a HDMI 1080p distribution hub that sends the same HDMI video input to eight HDMI HDTV digital screens. It support HDMI v1.4 3D Video Format, RS-232 control, Two Splitter Modes. Solid Socket design to hold HDMI connector contact tight for shock & vibration resist and Kensington Lock slot for security.


PS128A is a flexible solution to integrate multiple displays in signage, video wall or demo shelf.



Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  HDMI 1080p distribution hub that sends the same HDMI video input to eight HDMI HDTV and support HDMI v1.4 3D Video Format, RS-232 control.
  Splitter Mode Dip Switch at box front: • Mode 1 (default) Greatest Common Video & Audio Format among all displays connected. • Model 3 Following Output 1 display, video source will do EDID handshaking with Output 1 display only.
  Solid HDMI socket for Solid connection and High Performance transmission
  Screw hole ready for HDMI cable with screw to solid fix on splitter
  Socket design to hold HDMI connector contact tight for shock & vibration resist
  Support HDMI 36-bit Deep Color & x.v.Color wide color gamut
  PRODUCT SPECIFICATION
  HDMI Spec.:1.3b
  DVI Spec.:1.0 Compliant
  HDCP Spec.:1.2 Compliant
  3D Video Format:Support HDMI v1.4 Video Format (Side by Side, Top and Bottom, Frame Packing)
  RS-232c connector:Rs-232 command control from PC or other control panel
  Daisy Chain:3 layers /512 displays (8 x 8 x 8)
  Operating Temperature:+5ºC to +35ºC
  Storage Temperature:-20ºC to +60ºC
  Humidity Range:5% to90% RH
  Signal Rate:6.75Gbps
  Power Consumption:3W
  Video Bandwidth:225 MHz
  Single Link Range:480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
  Dimension:342(W) x 163(D) x 27(H) mm
  Net Weight:1.7kg/3.74lbs
  EAN Barcode:4712818572889
  Qty per Carton:5pcs
  Package Content:1080p HDMI Splitter 1:8, 5V DC Adapter, Usermanual

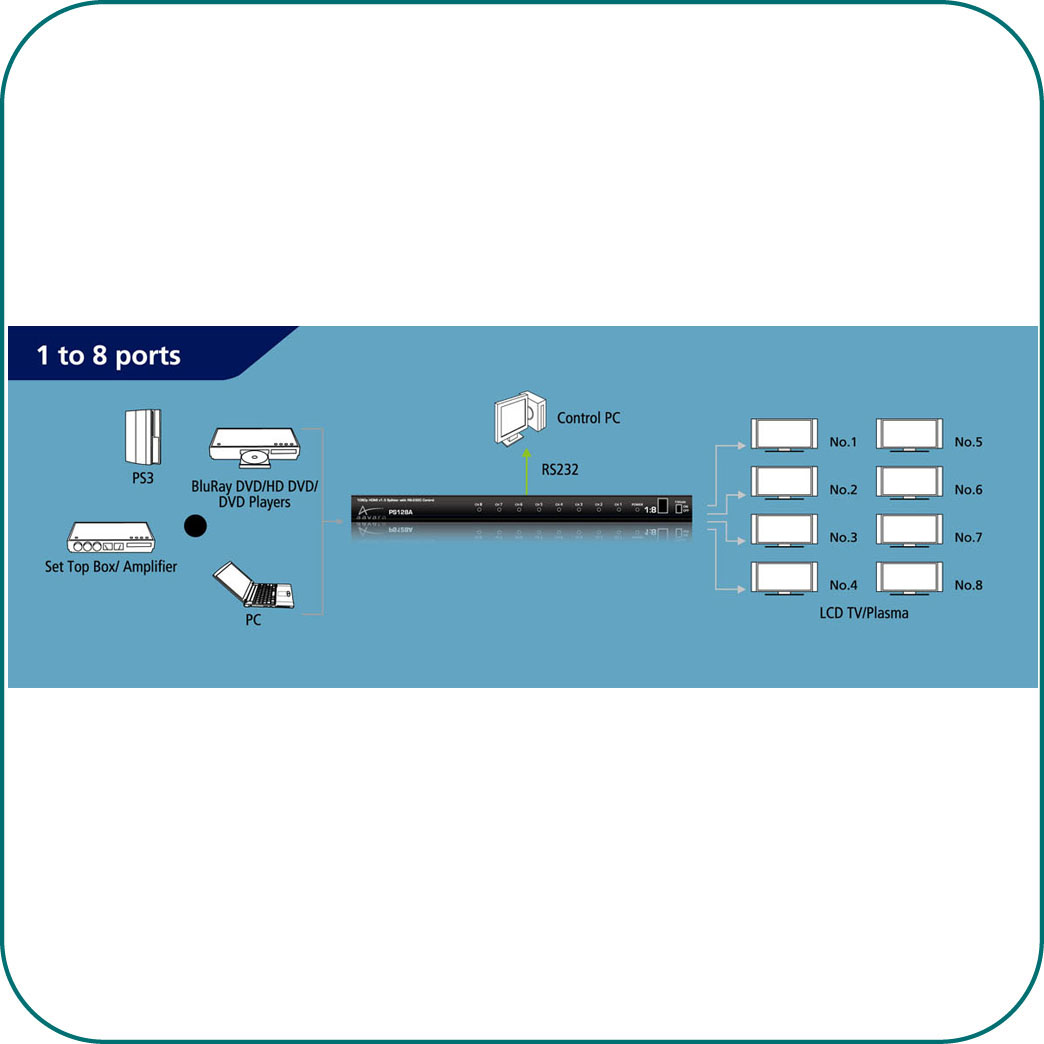

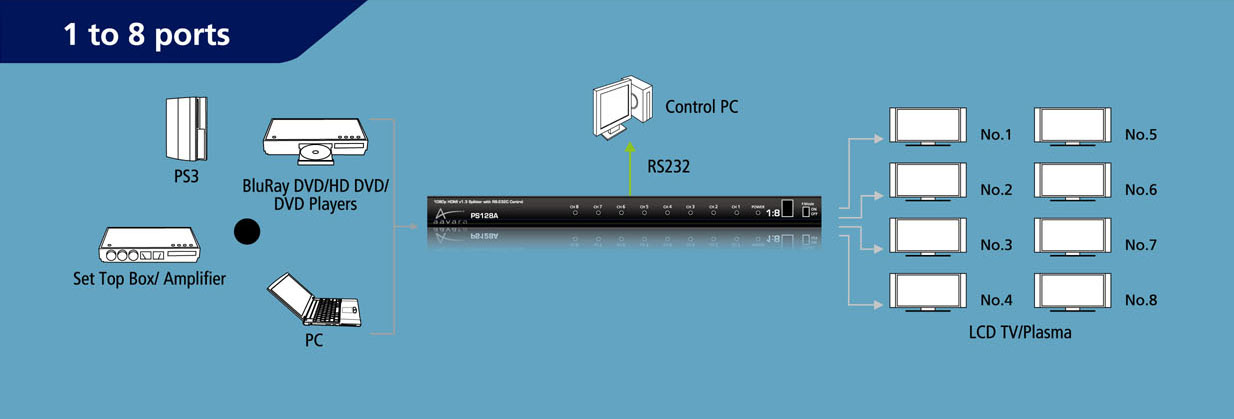

  INSTALLATIONS

  DOWNLOADS
  User Guide

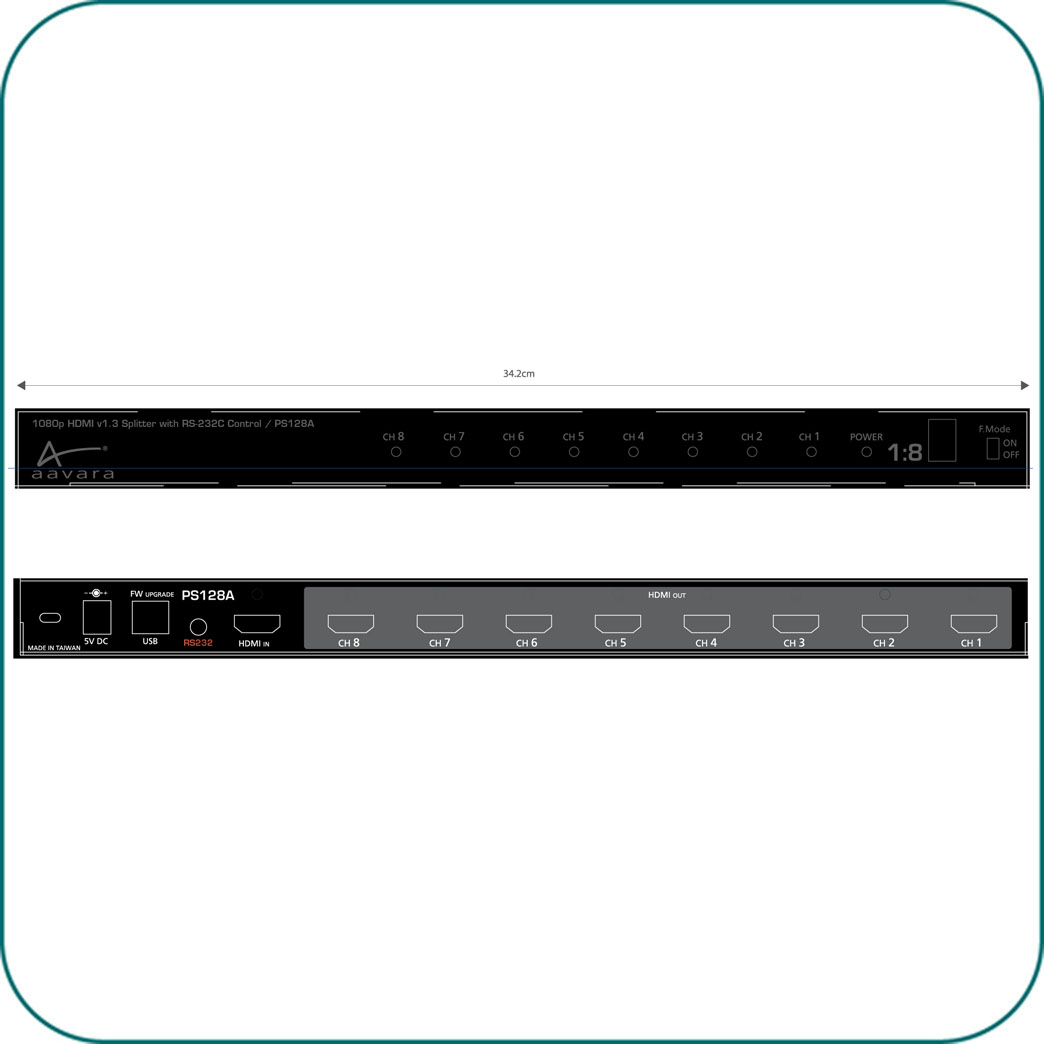

  Dimensional Illustrations
