  SS422A

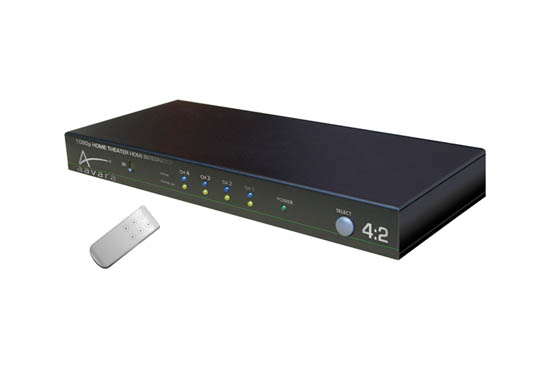

1080p HDMI HomeTheater Integrator

Aavara® 1080p HDMI Home Theater Integrator SS422A is a switch/distribution hub that sends two HDMI HDTV digital screens/projector/amplifier from one of four HDMI video sources. It features Max. Audio & Video Format output mode for integrating TV/Amp./AV Receiver.

It is a flexible solution to integrate two TV/displays/projector/amplifier with multiple HDMI video devices.

Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  Allows access from four HDMI devices to two HDMI displays
  CEC (Consumer Electronic Control) pass-thru (Channel 1)
  Support Max. Audio & Video Format output mode for integrating TV/Amp./AV Receiver
  HDMI firmware upgrading can be done via Dip Switch on the device
  Support Dolby® TrueHD & DTS-HD™
  Support x.v.YCC wide color gamut and 36-bit Deep Color up to 1080p
  Support 7.1 digital surround
  Plug-and-play. Installs in seconds
  PRODUCT SPECIFICATION
  HDMI Spec.:1.3b Compliant
  DVI Spec.:1.0 Compliant
  HDCP Spec.:1.2 Compliant
  CEC:Allows 1 TV remote to sync interoperability between display/projector and HDMI AV devices connected.
  Operation temperature:+5ºC to +35ºC
  Storage temperature:-20ºC to +60ºC
  Humidity Range:5% to90% RH
  Signal Rate:6.75Gbps
  Power Consumption:3W
  Video Bandwidth:225 MHz
  Single Link Range:480i,480p,720p,1080i,1080p
  Cable Length:5M (In and Out respectively)
  Dimension:245(W) x 107(D) x 27(H) mm
  Net Weight :690g/1.52lbs
  EAN Bar Code:4712818572636
  Qty per Carton:10
  Gross Weight per Carton:12.6kg
  Package Content:1080p HDMI Home Theater Integrator 4:2, Remote Control, 5V DC Adapter, Usermanual

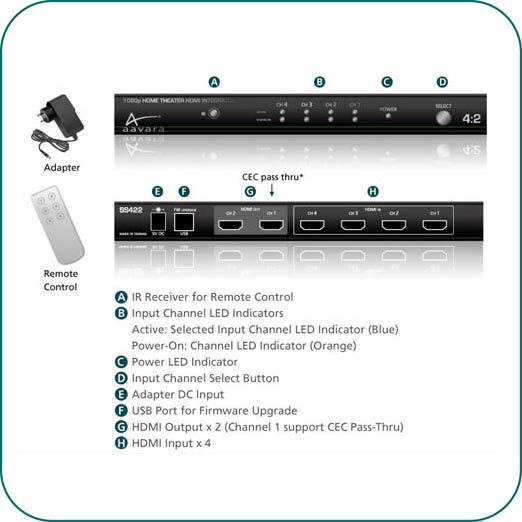

  INSTALLATIONS

  DOWNLOADS
  User Guide
  Dimensional Illustrations
  Product Image
  Package
