WALL SUPPORT

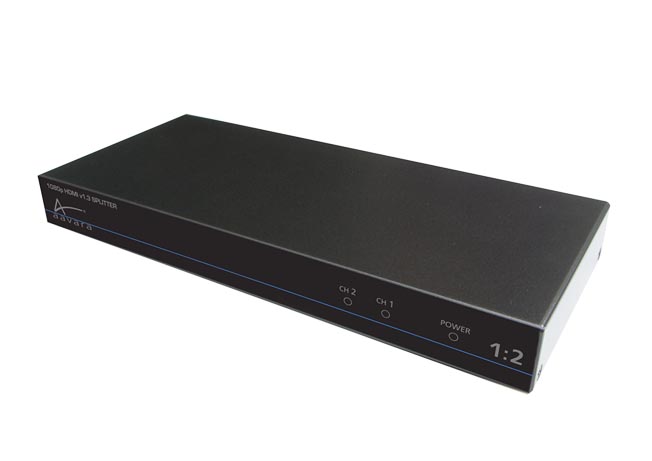

  PS122
HDMI 1080p Splitter 1 to 2

Aavara® PS122 is a HDMI v1.3b 1080p distribution hub that sends the same HDMI video input to two HDMI HDTV digital screens. It is a flexible solution to integrate multiple displays in TV/projector Home Theater, signage or demo shelf.

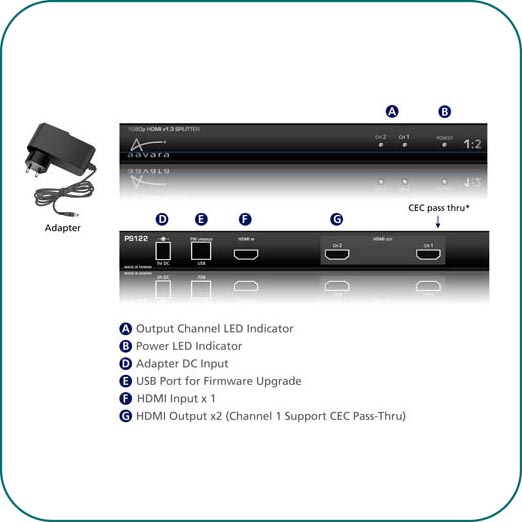

Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  Distribute HDMI signal to 2 HDMI displays
  Daisy Chain up to 3 layers /128 displays (2 x 8 x 8)
  CEC (Consumer Electronic Control) pass-thru (Output Channel 1)
  Support 36-bit Deep Color up to 1080p
  Support x.v.YCC wide color gamut
  Audio support Dolby® TrueHD & DTS-HD™
  Support 7.1 digital surround & Lip Sync
  HDMI firmware upgradable, no compatible issue
  Plug-and-play. Installs in seconds
  PRODUCT SPECIFICATION
  HDMI Spec:1.3b Compliant
  DVI Spec.:1.0 Compliant
  HDCP Spec.:1.2 Compliant
  CEC:Allows 1 TV remote to sync interoperability between display/projector and HDMI AV devices connected.
  Operation temperature:+5ºC to +35ºC
  Storage temperature:-20ºC to +60ºC
  Humidity Range:5% to90% RH
  Signal Rate:6.75Gbps
  Power Consumption:3W
  Video Bandwidth:225 MHz
  Single Link Range:480i,480p,720p,1080i,1080p
  Cable Length:5M (In and Out respectively)
  Dimension:245(W) x 107(D) x 27(H) mm
  Net Weight :680g/1.5lbs
  EAN Bar Code:4712818574555
  Qty per Carton:10pcs
  Gross Weight per Carton:12.6kg/27.77lbs
  Package Content:1080p HDMI Splitter 1:2, 5V DC Adapter, Usermanual

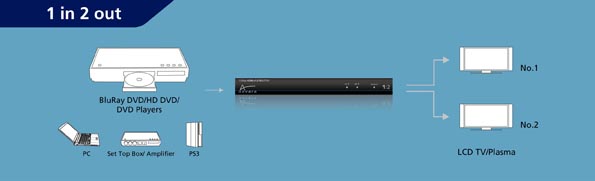

  INSTALLATIONS

  DOWNLOADS
  User Guide
  Dimensional Illustrations
  Product Image
  Package
