WALL SUPPORT

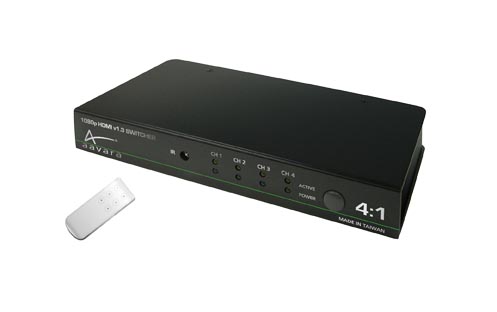

  SW421
HDMI 1080p Switcher 4:1

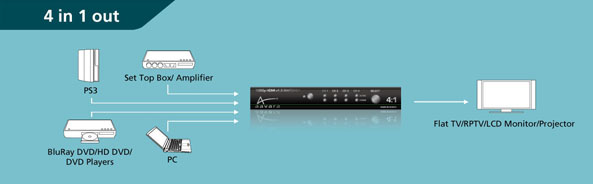

Aavara® SW421 allows one of 4 HDMI input (4 inputs like PS3, Xbox, STB, Blu-ray DVD…etc) to 1 HDTV digital screens. It facilities home theater ambiances by switching 4 of your desired HDMI digital contents to 1 HDMI digital screen. CEC* (Consumer Electronic Control) Pass-through allows one TV remote to synchronize your TV and all HDMI AV devices connected (all connected devices required CEC function). Hassle-free with remote controller attached, low cost AV solution to bring you the maximum Joyfulness to your home entertainment.
Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  Allows access from four HDMI devices to 1 HDMI display
  CEC (Consumer Electronic Control) pass-thru (Output Channel 1)
  Support 36-bit Deep Color up to 1080p
  Support x.v.YCC wide color gamut
  Audio support Dolby® TrueHD & DTS-HD™
  Support 7.1 digital surround & Lip Sync
  HDMI firmware upgradable, no compatible issue
  Plug-and-play. Installs in seconds
  PRODUCT SPECIFICATION
  HDMI Spec:1.3b Compliant
  DVI Spec.: 1.0 Compliant
  HDCP Spec.:1.2 Compliant
  CEC:Allows 1 TV remote to sync interoperability between display/projector and HDMI AV devices connected.
  Operation temperature:+5ºC to +35ºC
  Storage temperature:-20ºC to +60ºC
  Humidity Range:5% to90% RH
  Signal Rate:6.75Gbps
  Power Consumption:3W
  v\Video Bandwidth:225 MHz
  Single Link Range:480i,480p,720p,1080i,1080p
  Cable Length:5M (In and Out respectively)
  Dimension:245(W) x 107(D) x 27(H) mm
  Net Weight :690g/1.52lbs
  EAN Bar Code:4712818572643
  Q'TY per Carton:10pcs
  Gross Weight per Carton:12.6kg/27.77lbs
  Package Content:1080p HDMI Switcher 4:1, Remote Control, 9V DC Adapter, Usermanual
  INSTALLATIONS

  DOWNLOADS
  User Guide
  Dimensional Illustrations
  Product Image
  Package
