  PM4X2

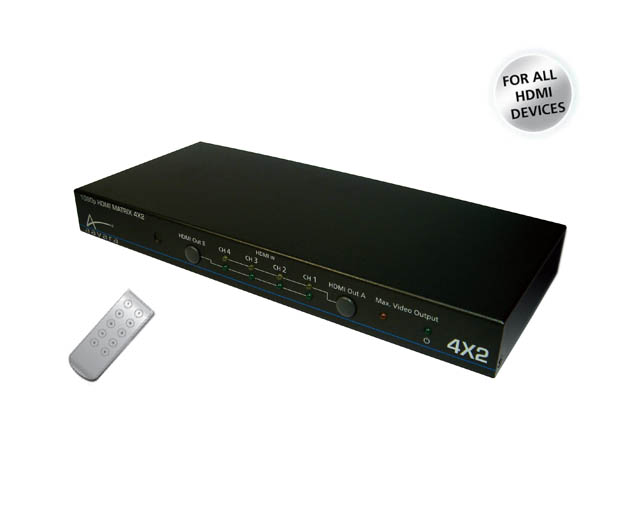

1080p HDMI MATRIX 4X2

Aavara® PM4X2 1080p HDMI 1.3b MATRIX 4X2 is a switcher/splitter hub that offers you maximum convenience in HDMI signal distribution when you have multiple HDMI sources and displays to connect together. Each of the Four HDMI sources can be directed to any one of the two HDMI outputs so two displays/projector can show same source or two different sources simultaneously. It is compliant with Blu-ray DVD players and satellite set top boxes to any HDMI compatible display. Sources are accessible at any time to any display when operating with the IR remote. PM4X2 4x2 matrix switching allows maximum versatility for integrated systems.
Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  Allow to select same HDMI source or two different sources output to two displays separately

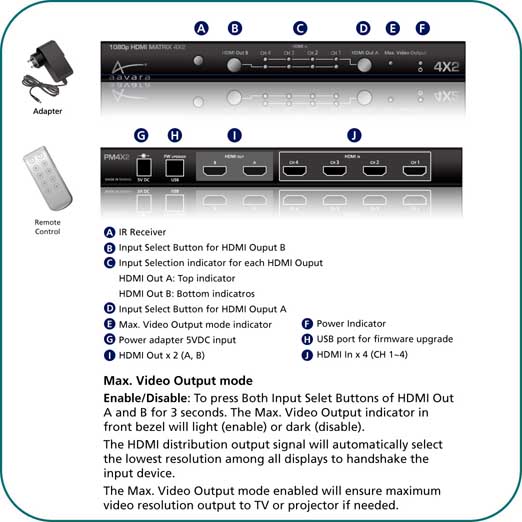

  “Max. Video Output” function for Home Theater installation, allow to send to TV and Amp with Max. Video and Audio signal
  HDMI Specification 1.3b Compliant
  Support HDMI 36-bit Deep Color & x.v.Color wide color gamut
  Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
  HDMI firmware upgradeable, no compatible issue
  Audio support Dolby® TrueHD & DTS-HD™ lossless 7.1 digital surround & Lip Sync
  Plug-and-play. Installs in seconds
  Easy operating with IR Remote
  PRODUCT SPECIFICATION
  HDCP Spec.:1.3b Compliant
  DVI Spec.:1.0 Compliant
  HDCP Spec.:1.2 Compliant
  MATRIX 4X2:Transmit same source or two different sources simultaneously
  Max. Video Output Functio:Allow to send to TV and Amp with Max. Video and Audio signal
  Operation temperature:+5ºC to +35ºC
  Storage temperature:-20ºC to +60ºC
  Humidity Range:5% to90% RH
  Signal Rate:6.75Gbps
  Power Consumption:5W
  Video Bandwidth:225 MHz
  Single Link Range:Supports 480i, 480p, 576i, 576p, 720p, 1080i and 1080p resolution
  Cable Length:5M (In and Out respectively)
  Dimension:245(W) x 107(D) x 27(H) mm
  Net Weight :670g/1.48lbs
  EAN Bar Code:4712818572674
  Q'TY per Carton:10
  Gross Weight per Carton:12.6kg
  Package Content:1080p HDMI MATRIX 4X2, Remote Control, 5V DC Adapter, Usermanual

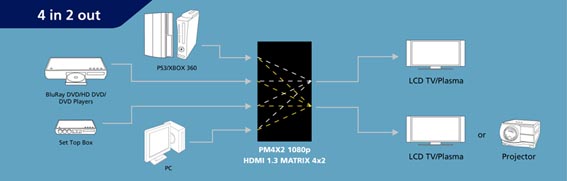

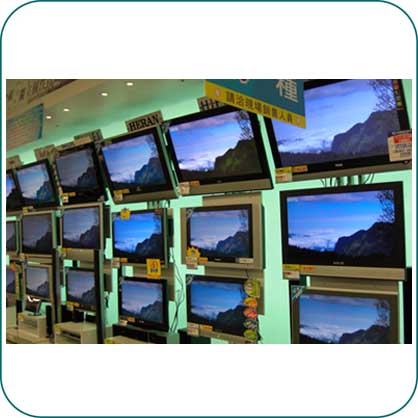

  INSTALLATIONS

  DOWNLOADS
  User Guide
  Dimensional Illustrations
  Product Image
  Package
