  PB053
Short Throw Projector Mount

Aavara PB053B is a Short Throw Projector mount, featuring focusing for 0.3 - 0.35 Short ratio with distance from the wall max. to 540 mm and fine tune solution. Micro adjustment for Tilt, Swivel, Horizontal movement for best alignment of required distance.

In-Tube Management available, Aluminium Structure and universal mounting diameter to meet most short throw projects brands in the market.
Features  Specifications  Installations  Downloads
  PRODUCT FEATURES
  Horizontal Lateral Movement +/-20 mm
  Projector Tilt +/-10°
  Wall Mount Tilt +/-5°
  Compatible with Diameter Ø325 mm
  Easy to Install
  Max. Distance To The Wall 540 mm
  PRODUCT SPECIFICATION
  Loading Capacity:15 kg /33.07 lbs
  Mounting Pattern:Diameter Ø325 mm
  Dimension (WxHxD):352.5*215*715 mm
  Material:Steel/Aluminum Alloy/Plastic
  Gross Weight:3.03 kg / 6.68 lbs
  Screw Type:M3,M4,M5,M6
  Projector Tilt & Swivel:+/-10°
  Wall Mount Tilt:+/-5°
  Max. Distance to Wall:540 mm

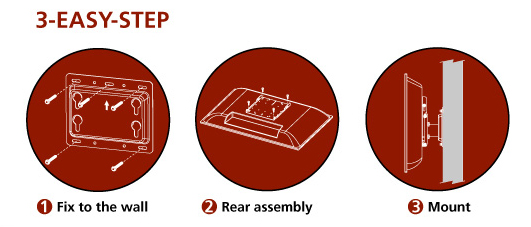

  INSTALLATIONS

  DOWNLOADS
  User Guide

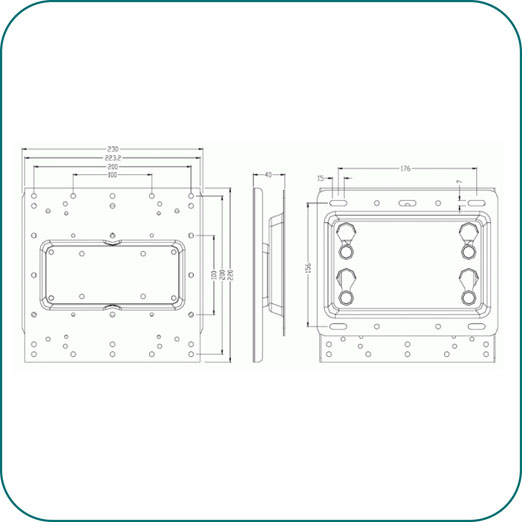

  Dimensional Illustrations

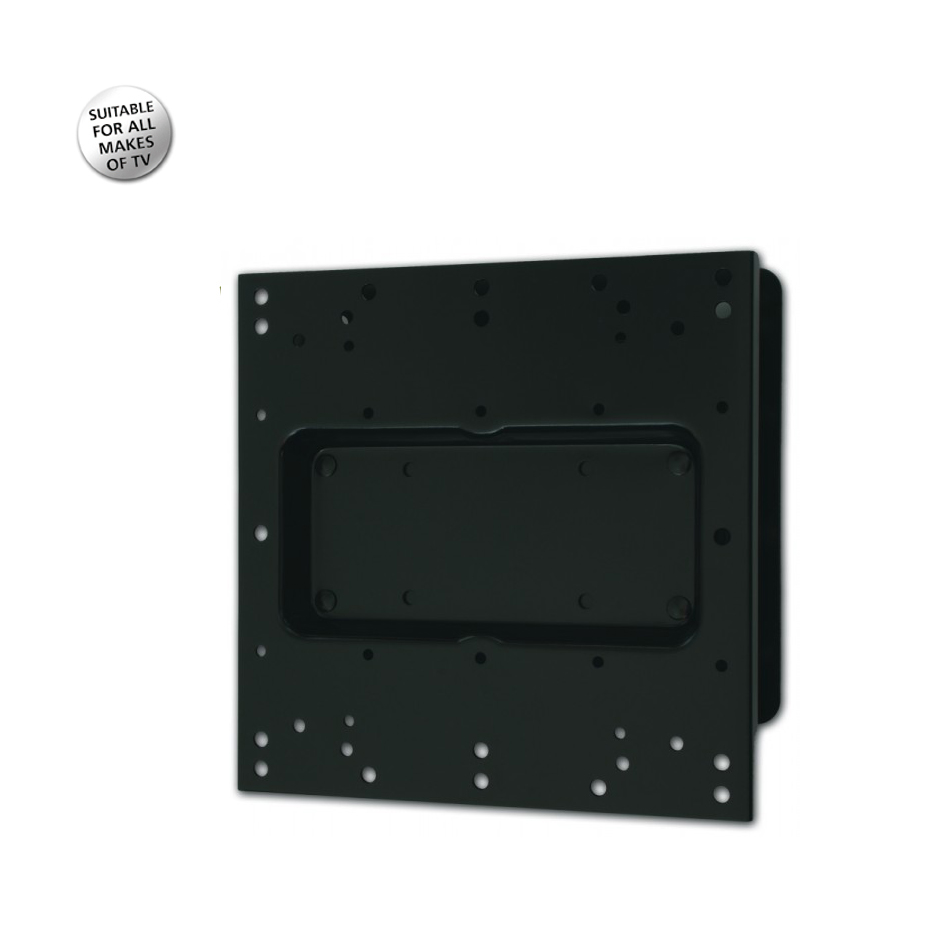

  Product Image
