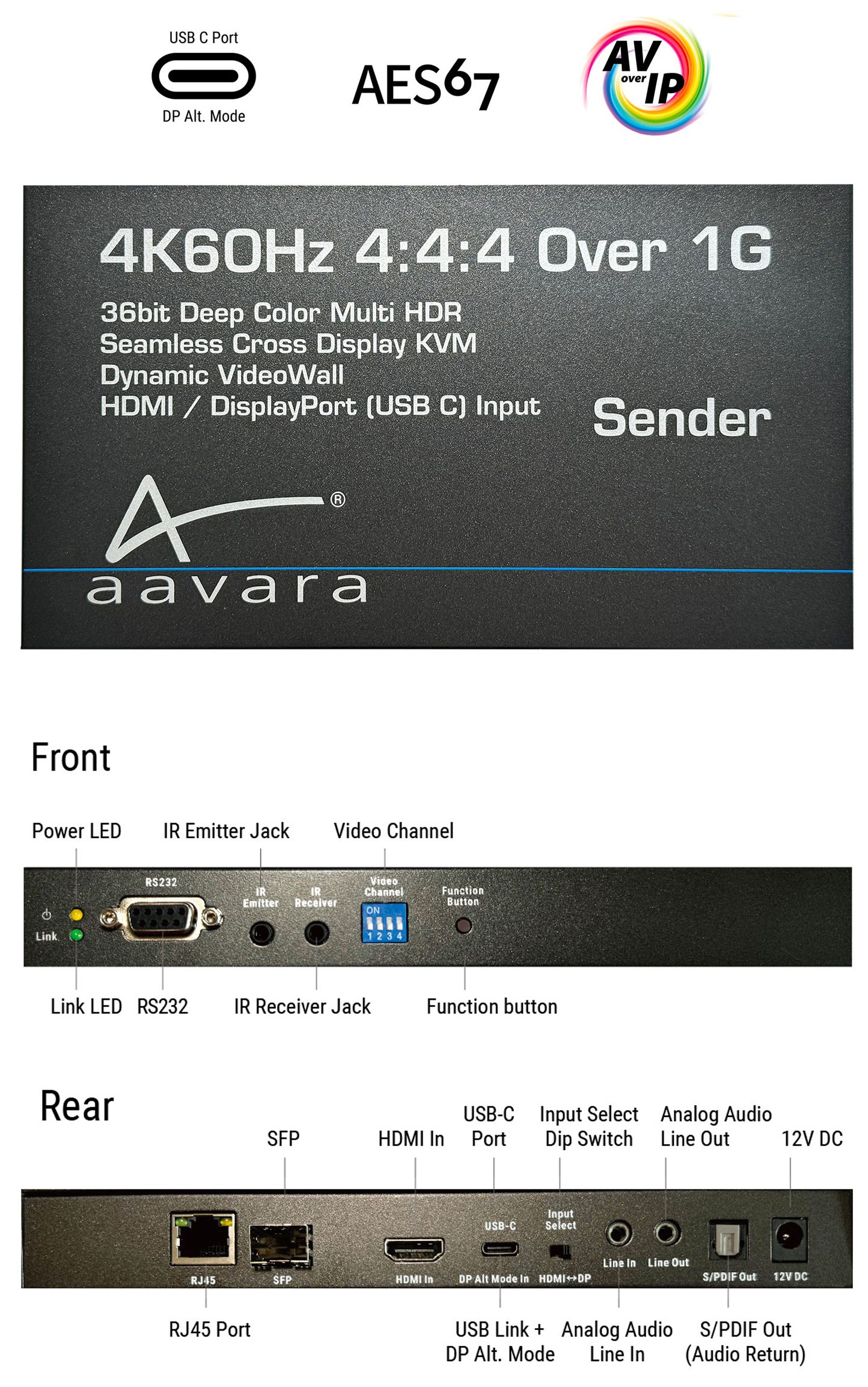

PB9700-SE 4K/KVM over IP Sender is a great 4K video distribution solution for Residential, KVM and Signage deployment, integrating Web-based Aavara AV Master Control Software and 3rd Party Control drivers for centralizing control.

- 4K 60Hz YUV 4:4:4 Video Pass-Thru Over 1 Gbps Ethernet Network
- 36bit Deep Color Video Engine for Dolby Vision, HDR 10+, HDR10, HLG multi HDR format support
- HDMI/DisplayPort (USB C DP Alt. Mode) Daul Input
- AES67 2x2 LPCM Audio AoIP In or Out
- Loseless Audio Pass-Thru for up to 7.1 ch LPCM, Dolby ATMOS and DTS X digital audio.
- HDMI eARC, ARC and S/PDIF Fiber Toslink for Audio Return Channel Support
- S/PDIF Toslink Opticsl ARC Audio Output for up to 5.1 ch Dolby Digital/AC3 and DTS digital audio output AV receiver/amplifer.
- Sub-stream Video for live video snapshot
- Aavara AV Master Web Control interface
- Major Controller Integration: SAVANT, Control4, AMX, RTI, Crestron, Extron, Elan g!, Neets and more.
- Independent Matrix Routing for Video, Audio, IR, RS232, USB
- Seamless Cross Display KVM Switching
- CEC/IR/RS232 Comnand  Pass-Thru & IP Command
- USB 2.0 Pass-Thru
- VideoWall Easy Setup & Flexibile Operate by Easy Web Interface configuration
- Asymmtric VideoWall Support
- Keyboard Hotkeys Control
- Message On Screen

PB9700 fully meets the high demand of Residential application as Home AV matrix w/ 4K HDR, Dolby Atmos/DTS X  and 3D support. And ideal for DOOH in Commercial Installation which demand Higher Video Quality, Analog Audio Line out to support Active Speaker for public area, IR, CEC and RS-232 to control the Displays. In addition, 4K Ultra HD & KVM w/ HighSpeed USB connection available.
