PB5000+

HDMI over IP with IR/RS-232 Control Pass-Thru

Multi-Casting Signage/DOOH Can Be So Easy by Aavara PB5000+PoE HDMI Over IP

New updated PB5000+PoE HDMI over IP which is a great HD video distribution solution for DOOH and Signage deploy. It delivers stunning Ultra High Quality 1080p HDMI Video broadcast over IP network, support Power Over Ethernet function that powered supplied by Network switch. Fully leveraging the mature inexpensive Gigabit Ethernet network switch in market, PB5000+ can supports Point to Point, Point to Many Broadcasting, and Multi-Casting which multiple video sources with PB5000+ Senders video streaming to multiple TVs/Displays/Projectors with PB5000+ Receiver.

NEW Functions!
- Power over Ethernet
- VideoWall function added for Max. 8x16 Displays by Easy Web Interface configuration.
- Video Mode Switching Button for Smooth Motion Video or Sharp Clear Detail Image selection.
- EDID Copy Button, Can copy Display EDID table to Sender side for ensuring Maximum EDID compatibility.

free bootstrap theme

FEATURES

• 1080p Ultra High Quality Video transmission and Up to 16 Groups Multi-Casting
• Flexible and scalable HD Video broadcasting by Gigabit Ethernet LAN/Switch
• 1 to 1, 1 to many & multi-casting broadcasting architecture, adding more displays without adding LAN bandwidth loading
• IR Control Pass Thru for Controlling Video Source Device from Display side
• Two Way RS-232 Command Unicast Broadcast for Controlling Display or video Source Device from remote site
• Easy Dip Switch Matching for Multi-Casting Group configuration
• New EDID Copy/Video Mode Switching Button for Optimal Video Performance and enhance on EDID compatibility
• Video Wall function support, Max. Up to 8x16 displays by Easy Web Interface Configuration
• Power Over Ethernet available

SPECS

• HDMI Spec.:1.3 Compatible
• DVI Spec.:1.0 Compliant
• HDCP Spec.:1.1/ 1.2 Compliant
• Sender Connector:Power Adapter in, RJ45, RS232, IR Emitter Connector, HDMI
• Receiver Connector:Power Adapter in, RJ45, RS232, IR Receiver Connector, HDMI out
• HDMI Audio Output:Stereo L/R, 16bits, 48Khz
• HDMI Video Resolution:480p, 576p, 720p, 1080p
• PC DVI Input Resolution:Up to1920x1200 @ 60Hz
• Point to Point Distance:100M by Cat5e
• Broadcast Mode:Sender to Receiver via LAN/Switch, One Sender to Many Receivers(Display/ TV/ Projector)
• Broadcast Mode Length:Unlimited within LAN (Local Area Network)
• IR Control Pass Thru:20~60KHz to use infra Red Remote control of video source equipment(connected to sender) to control from Receiver side
• RS-232 Baudrate:300~230, 400bps, Default 115,200bps
• Operating Temperature:0-40ºC
• Storage Temperature:-20~50ºC
• Humidity Range:5%~90%RH
• Power Consumption:5W
• Power Adapter:DC 5V/2A
• Material :Metal
• Dimension (LxWxH):165x116x28mm
• Weight:325g
• Optional Accessory:Mounting Kit (MK-100)
• Package Content:1080p HDMI Broadcaster Sender & Receiver, 5V DC Adapter, Usermanual, IR Emitter Cable (Sender) or IR Receiver Cable(Receiver)

HDMI Distribution Solution features:

Aavara® PB5000+ HDMI Distribution Solution features centraliztion of 3rd Party Controller integration, ideal for best AV Matrix switching for commercial and residential application.......
Learn More

1

1st Quality

2

2 Year Warranty

3

3rd Party Controller Integration

16

Max. 8x16 Displays by Easy Web Interface configuration

Mobirise

3rd Party Controller Integration

Major Controller Integration: Control4, AMX, RTI, Crestron, Elan g!, Neets and more.


Mobirise

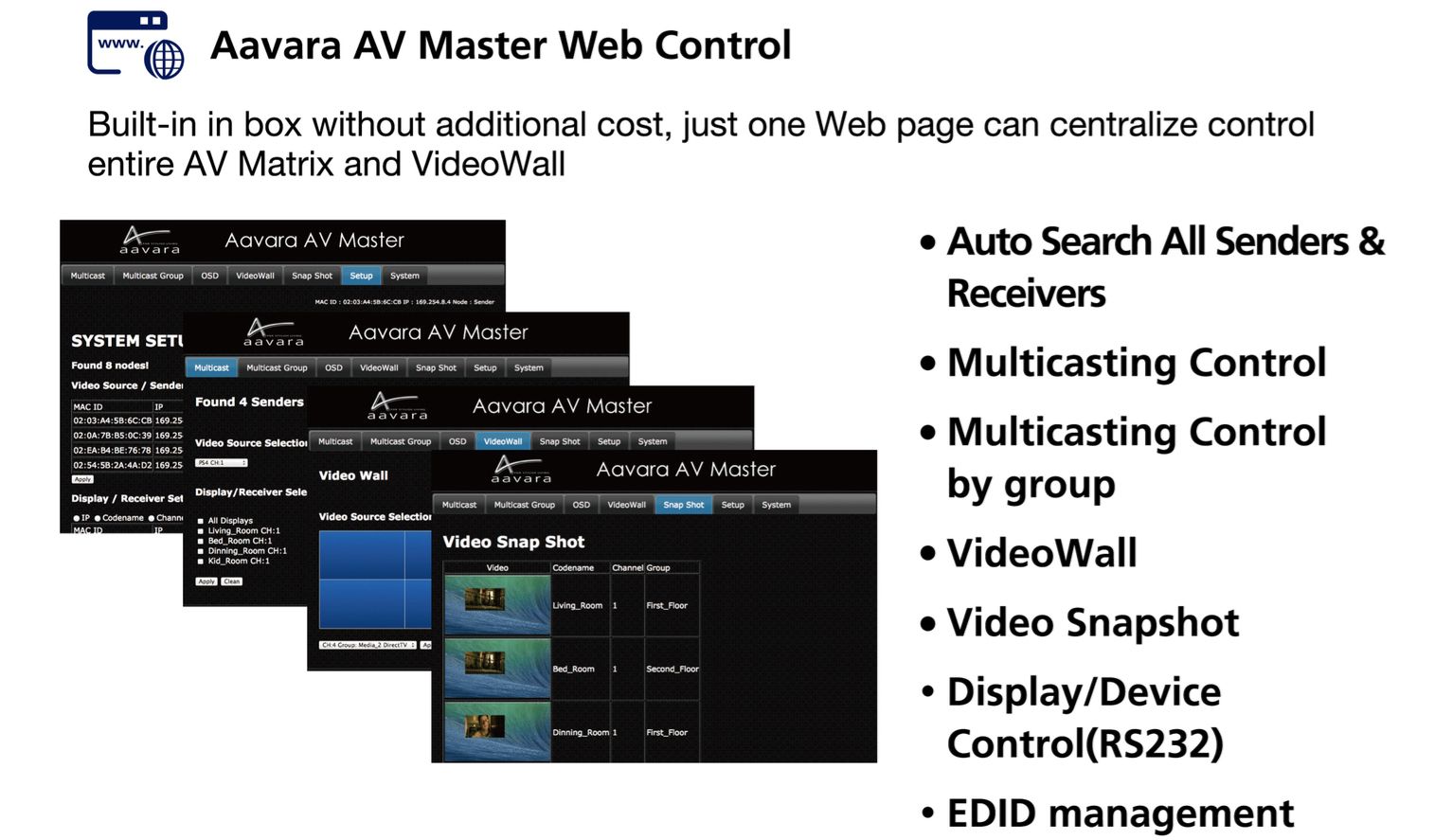

Aavara AV Master Web Control

Full function Aavara AV Master Web Control interface built-in in every box without extra cost. Just log on One Web page, it can setup & control entire HDMI Over IP network.


Mobirise

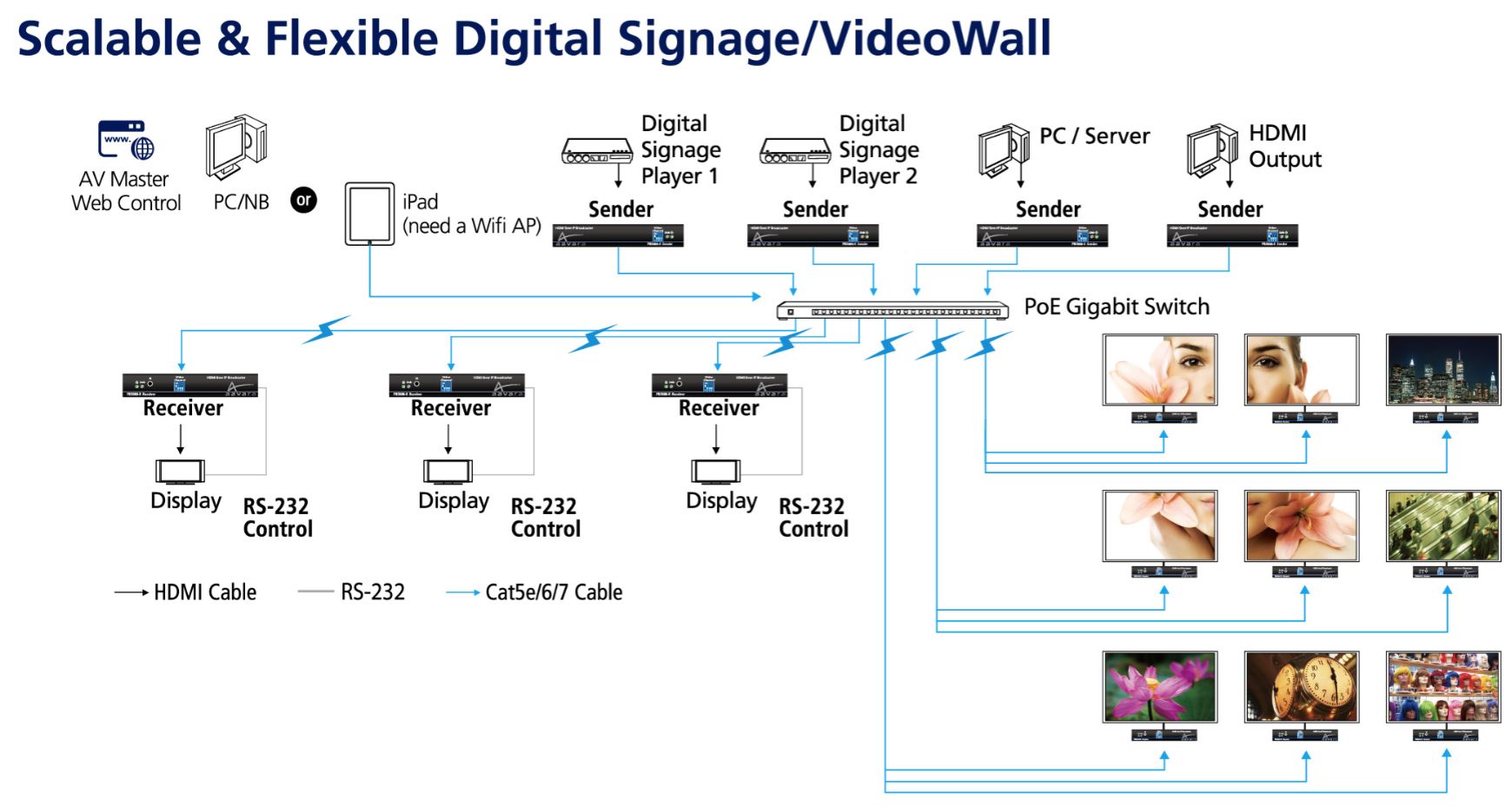

Video Wall

PB5000 provides scalable videowall setup and control. If any videowall layout change required, just add more sender or receiver without replacing entire system.

Mobirise

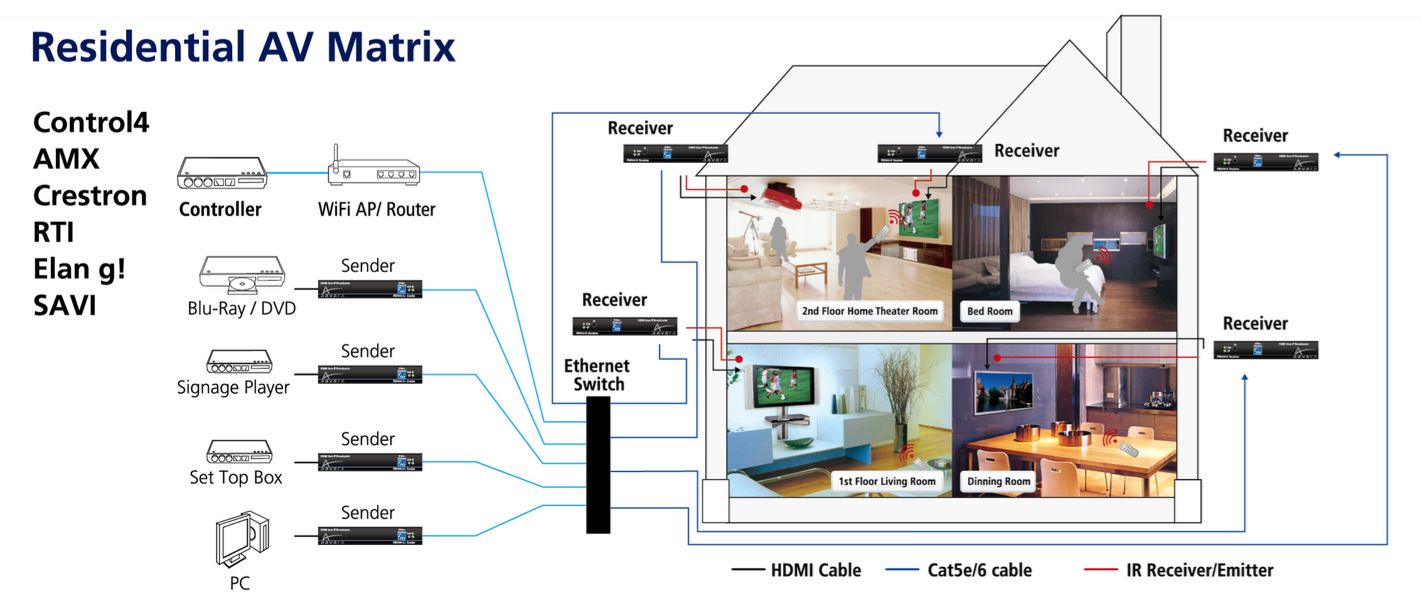

HDMI AV Matrix

PB5000 fully meets the high demand of Residential application as Home AV matrix w/ Losslessn 2ch LPCM Audio support. 1080p video is running very smoothly in Sports program video.
