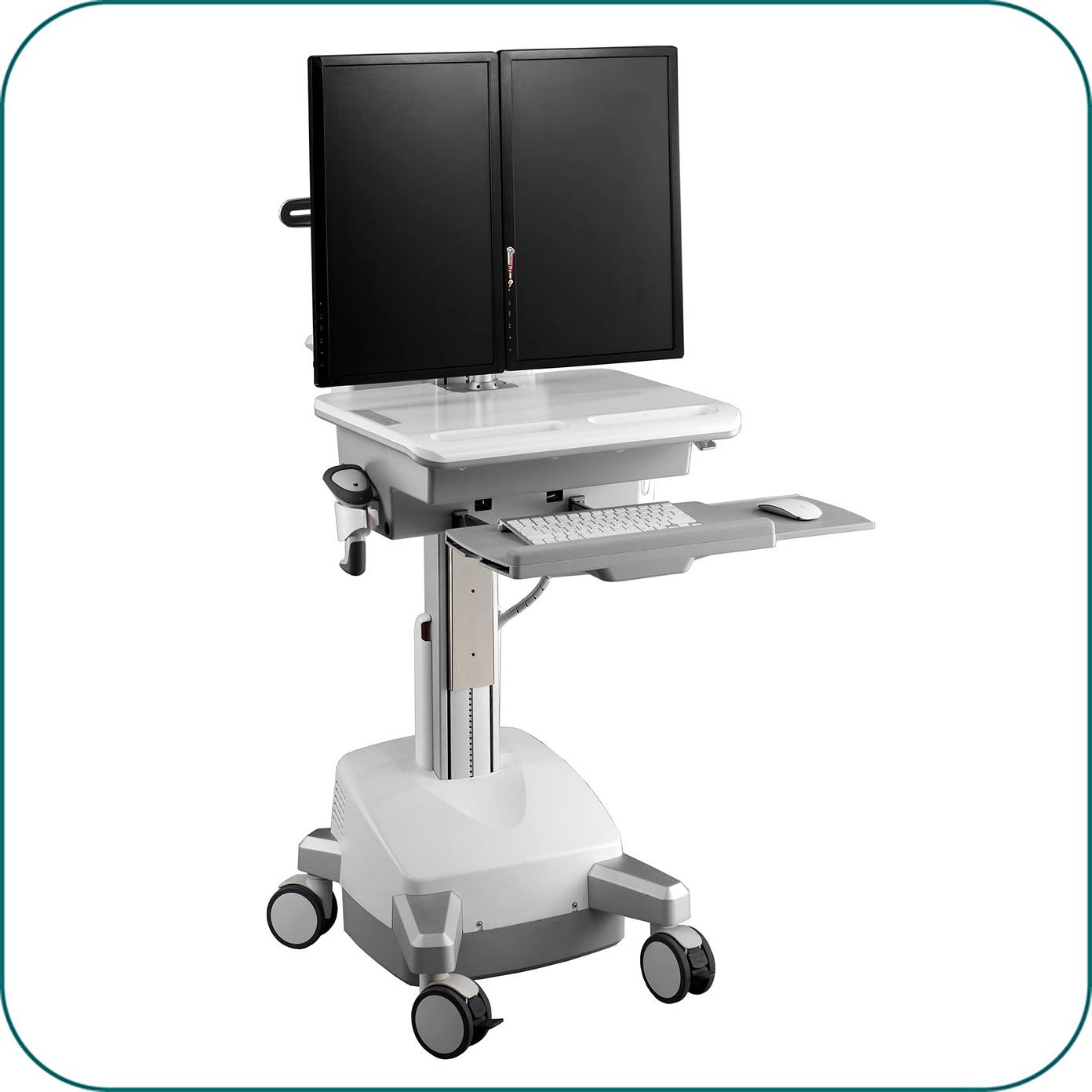

Powered Mobile Medical Cart with e-LIFT
-Dual Monitor type

CED01

Aavara is pround to present the Powered Mobile Medical cart series.  CED01 is equipped with battery, UPS Charger and E-LIFT for max. efficiency in Healthcare environment.
CED01 is a state-of-the-art and ergonomic design of Powered Mobile Medical Cart to surpass the traditional ironed cart. It supports 17''~24'' dual display and Modularized CPU Holder/ Storage space, electrical lift to adjust the height.

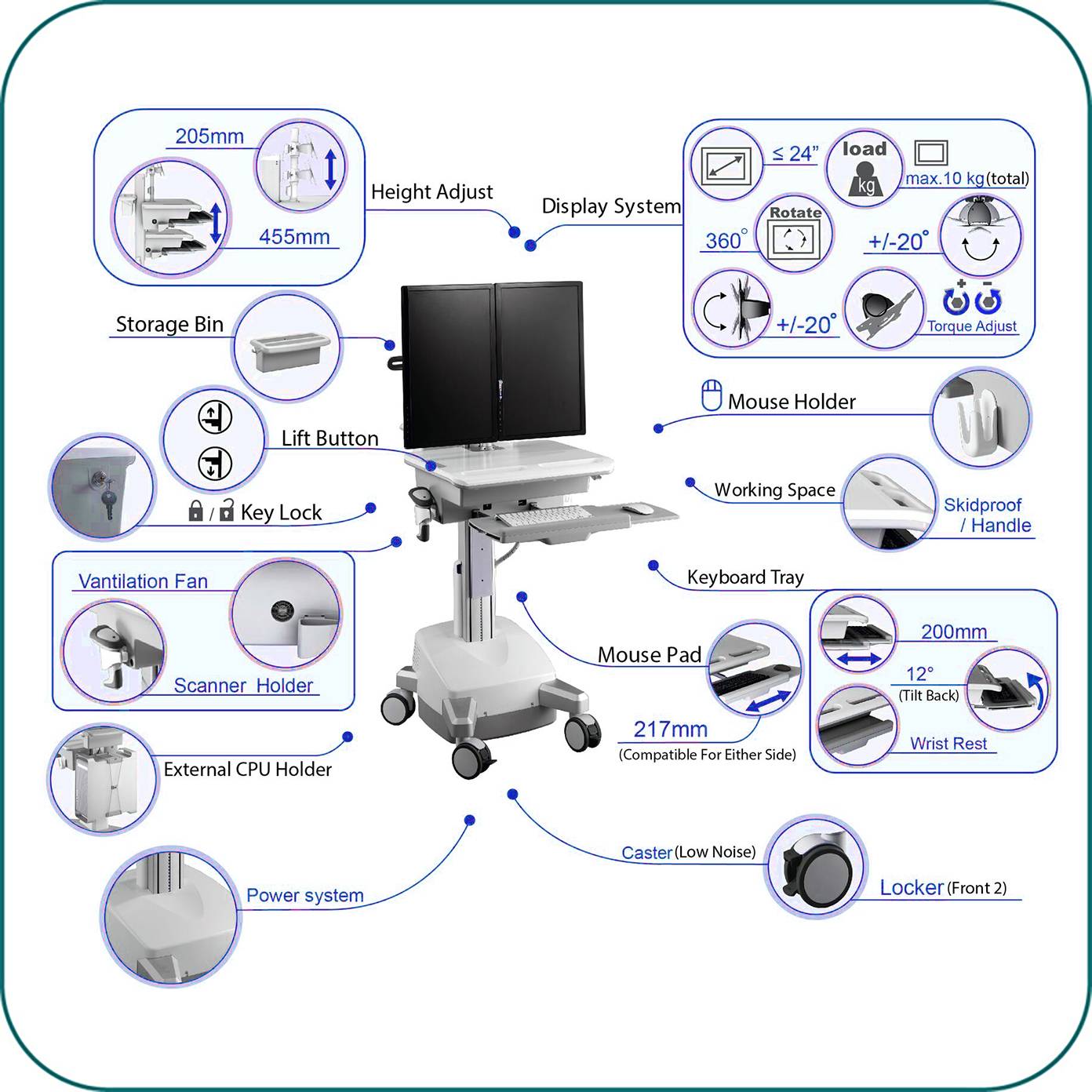

Features tilt, swivel, rotation of the display and height adjustment range up to 455 mm/ 17.9".
It facilitates the workflow and enhancing the max. efficiency with all fucntions in one stand-alone cart. Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of powered equipment in your working space.

Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 69. kg /152.68 lbs
Packaged Dimension: 800x640x1450mm
Combinated Accessories Expansion: YES
Packaged Dimension: 80x64x145cm


Power System

Input Voltage:
AC-in 100~240V 50/60 Hz
Batteries: by request
AC-in Power Outlet: IEC Compliant
Cables: Pre-routed

User Interface

Control Panel:
LED Display - including Power/Status Indicators
Keyboard Light: 4 LEDs under the Desk Handle
Battery Control Software: Yes


Features

Swivel:+/-20°
Tilt: +/-20°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

VESA: 100x100mm / 75x75mm
Display Type: Dual Monitor
Panel Size Support: 15"-24"/ 38-61cm
Max. Weight Load: 10 kg /22 lbs (For total two displays )

Height Adjustment

Height Adjust Range:205 mm /8.07"
Tension Torque Adjustment: NA
Cable Management: Yes



Open Workspace

Dimension: 482 x 261 mm /18.98" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment

Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES
External CPU Holder: YES

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"

Caster

Caster No: 4 (front 2, Rare 2)
Locking / Brake: Front 2
Low Noise: Yes

LIFT

Lift Handle: Yes
Height Adjust Range: 455 mm / 17.9"
Tension Torque Adjust: NA

Cerificate

RoHS/REACH Compliance: Yes
