Mobile Medical Cart
-Tablet type

CNT01

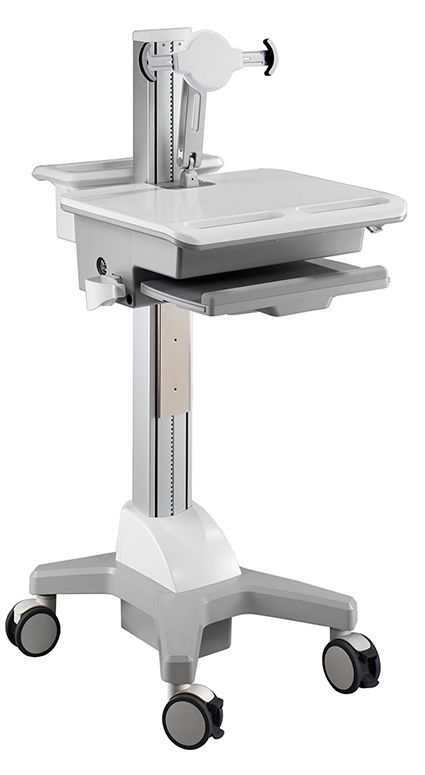

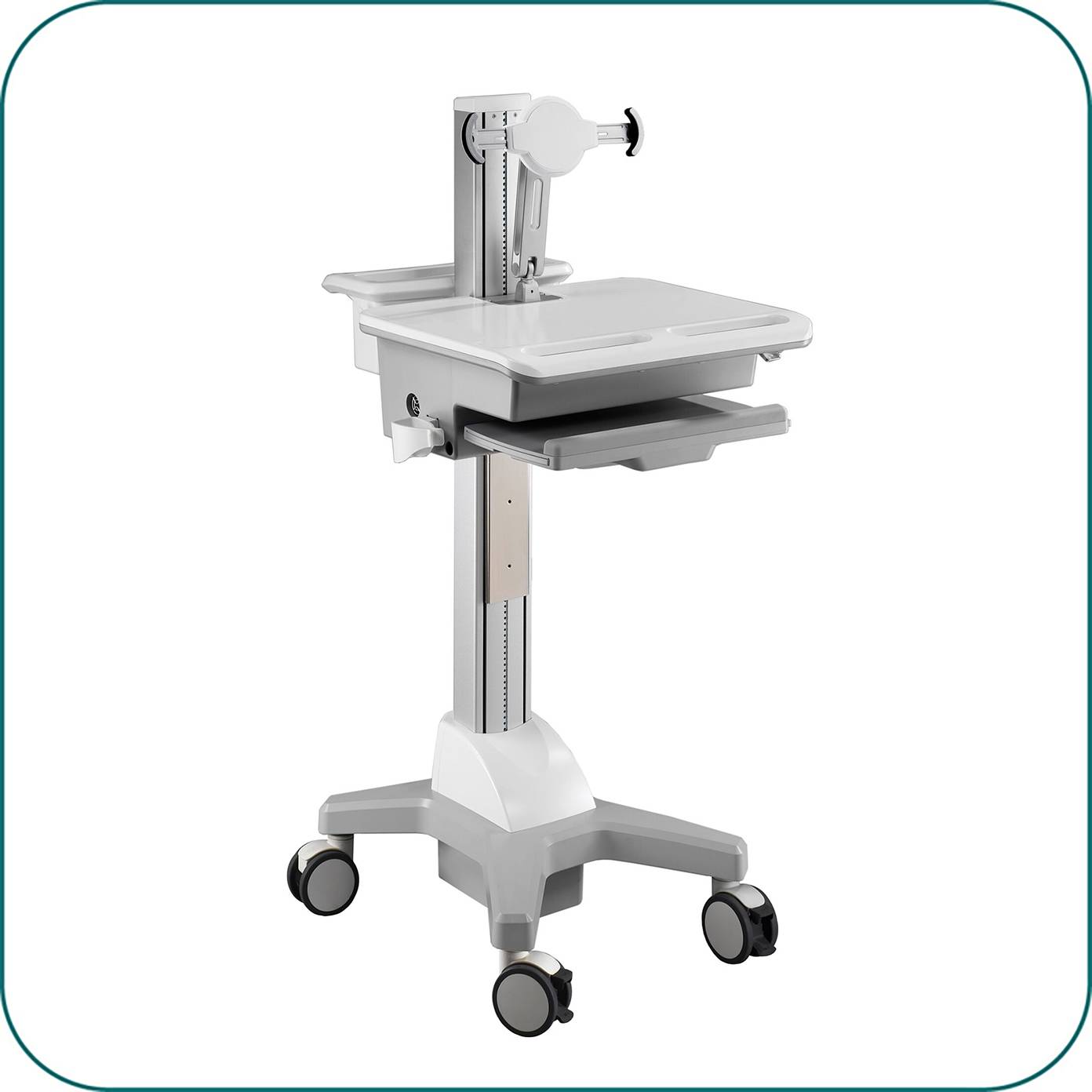

Aavara CNT01 is the Mobile Medical cart, equipped with tablet mounts 9" ~ 11"  and modularized CPU Holder/ Storage space/ Work station kit.  It designed with manually lift to adjust the heights and working surface embedded with Storage compartment, key lock and ventilation

Features tilt, swivel, rotation of the display and height adjustment range up to 500 mm / 19.7" , furthermore it comes with ExperTorque™ technology for easy adjustment of the screens hinged by its weight.

It facilitates the workflow and enhances the max. efficiency with all fucntions in one stand-alone cart.  Suitable for Healthcare, Workstation, Medical Care and wherever needs mobility of equipment in your working space.

Trolley Cart Main Page

Complete Spec

Overall Load Capacity: 15 kg /33 lbs
Net Weight: 29 kg /63.8 lbs

Combinated Accessories Expansion: Yes



Packaged Dimension

Dim: 72x26x142cm


Features

Swivel:+/-70°
Tilt: 180°
Pivot: 360°
ExperTorque™ Technology: YES
(Torque easy adjustment hinged by monitor weight)

Display Support

Tablet Size: 290 mm ~ 344 mm
Display Type: Tablet Type
Panel Size Support: 9" ~ 11"
Max. Weight Load: 1.2 kg /2.6 lbs

Height Adjustment

Height Adjust Range:211 mm /8.31"
Tension Torque Adjustment: NA
Cable Management: Yes




Open Workspace

Dimension: 517 x 261 mm /20.35" x10.28"
Max. Loading Capacity: 7.5 kg / 16.5 lbs
Skidproof at edge: YES
Rear Handle: YES
Surface Coating: YES

Compartment

Dimension: W425 x D325 x H90 mm/16.73" x12.8" x3.54"
Key Lock: YES
Ventilation Fan: YES
Scanner Holder: YES
Storage BIn: YES
External CPU Holder: NA

Keyboard & Mouse

Keyboard Tray Dim.: 449 x 207 mm /17.68" X8.15"
Wrist Comfort: YES
Tilt: Max. 12° (backward)
Mouse Pad Dim.:217 x 213 mm /8.54" x 8.39"

Caster

Caster No: 4 (front 2, Rare 2)
Locking / Brake: Front 2
Low Noise: Yes

LIFT

Lift Handle: Yes
Height Adjust Range: 500 mm / 19.7"
Tension Torque Adjust: NA

Cerificate

RoHS/REACH Compliance: Yes
