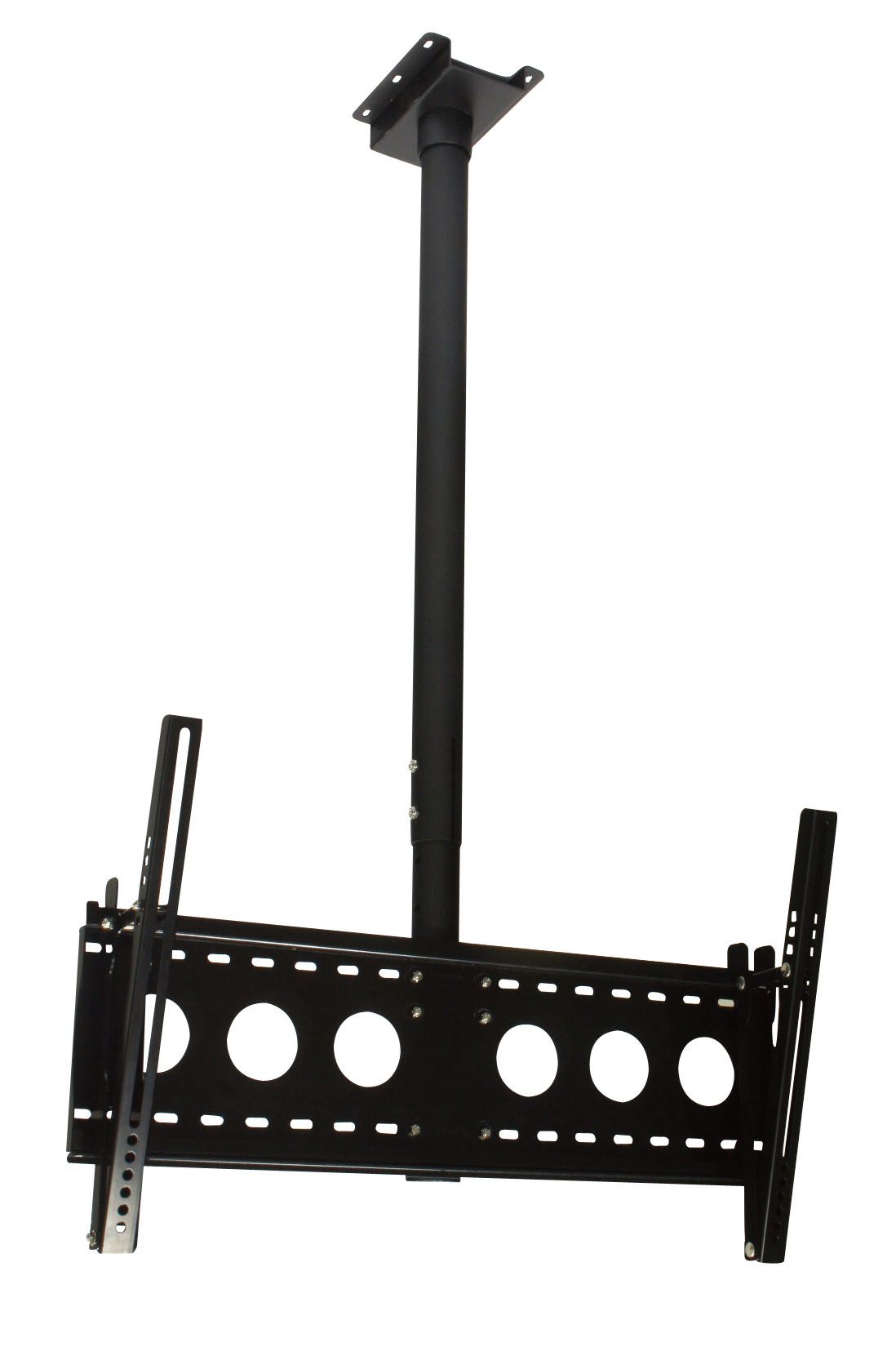

D9250+EF6540

Ceiling Support

    Aavara D9250+EF6540 is designed to support single displays Ceiling requirement for a DOOH (Digital Out Of Home) solution.

It supports 32 ~60inch displays with Max. mounting 725x450mm. Tilt 0°, 5°, 10°, 13°, 15° degree and features security for displays at outdoors with a safety lock function & Anti-Theft Lock.

With larger size of LCD/LED Ceiling Mount, it fully meets the demand of wider viewing angle at like airport, government institute, retail shops, gym and arena where required larger a ceiling display at designated locations.

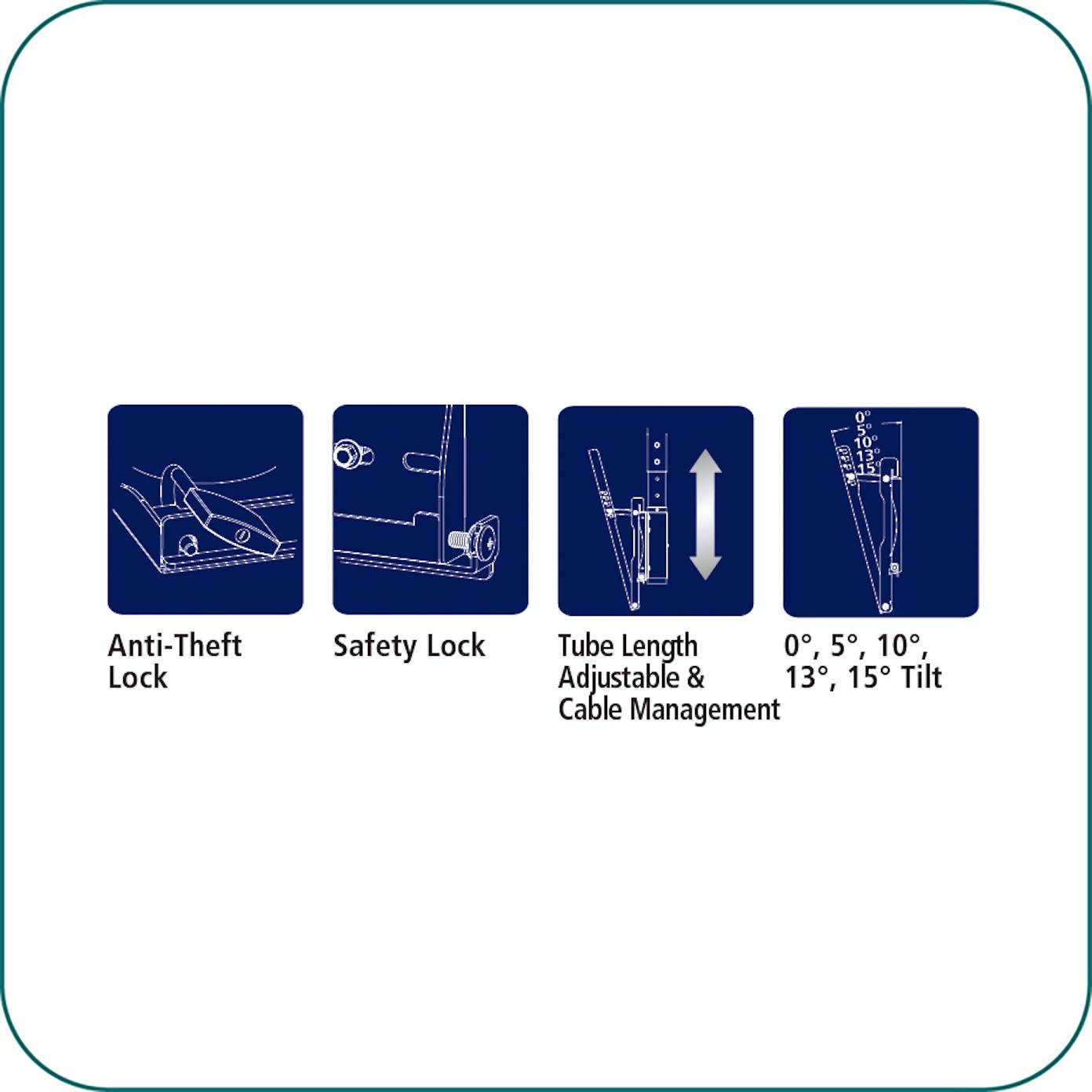

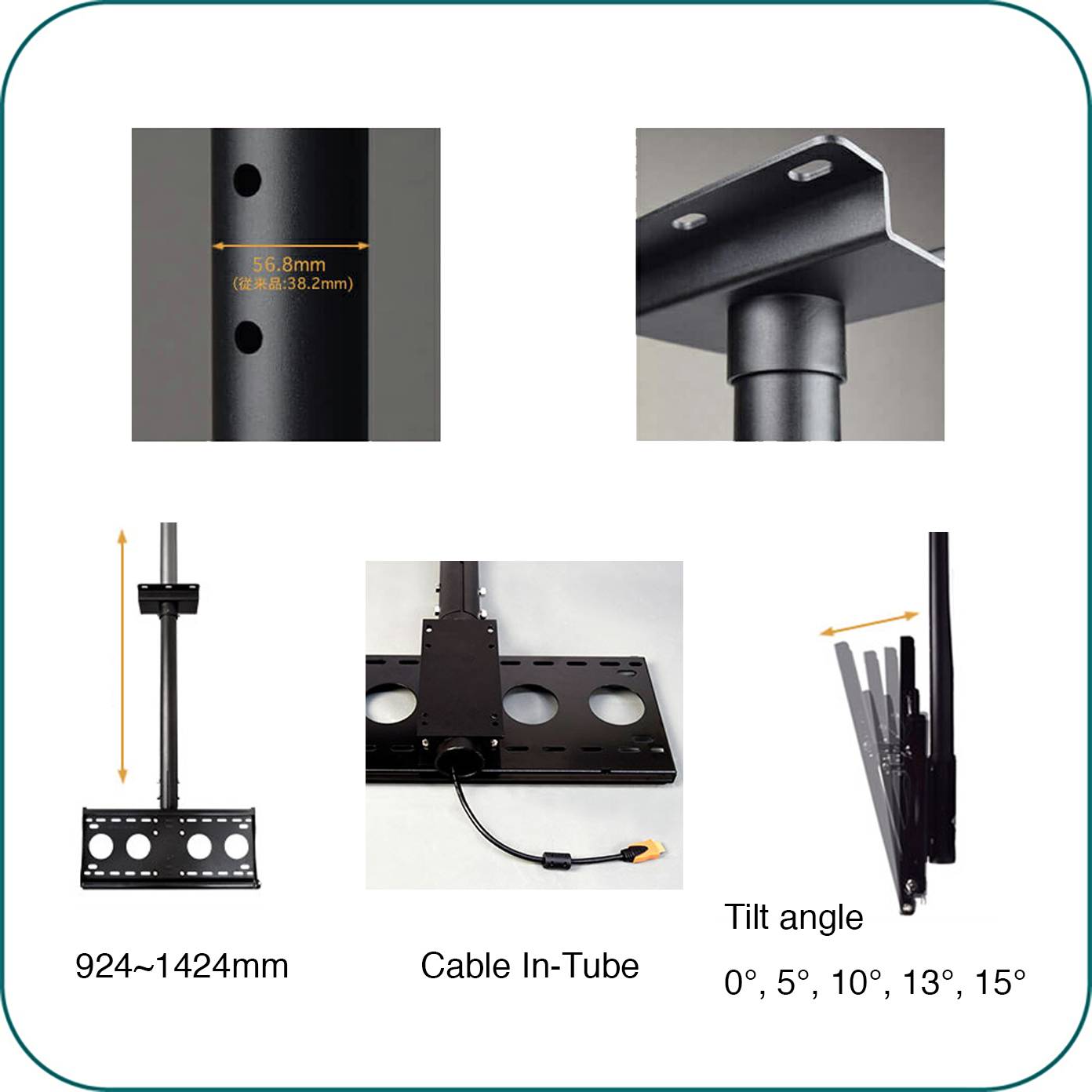

FEATURES

• LCD/LED Ceiling Mount
• TILT ANGLE 0°, 5°, 10°, 13°, 15°
• Supports 32-60 inch with MAX. MOUNTING 725x450mm
• Safety Lock to secure displays at outdoors
• Optimized solution for DIgital Out of Home (DOOH)
• Optional extended tube from 924-1424mm to 1500.5-2000.5mm.
- Extended tube R2000

SPECS.

• Flat Panel Size:32"-60"/ 81-152cm
• Loading Capacity:60kg/ 132lbs
• Tilt Angle:0°, 5°, 10°, 13°, 15°
• Safety Lock:Yes
• Anti-Theft Lock:Yes

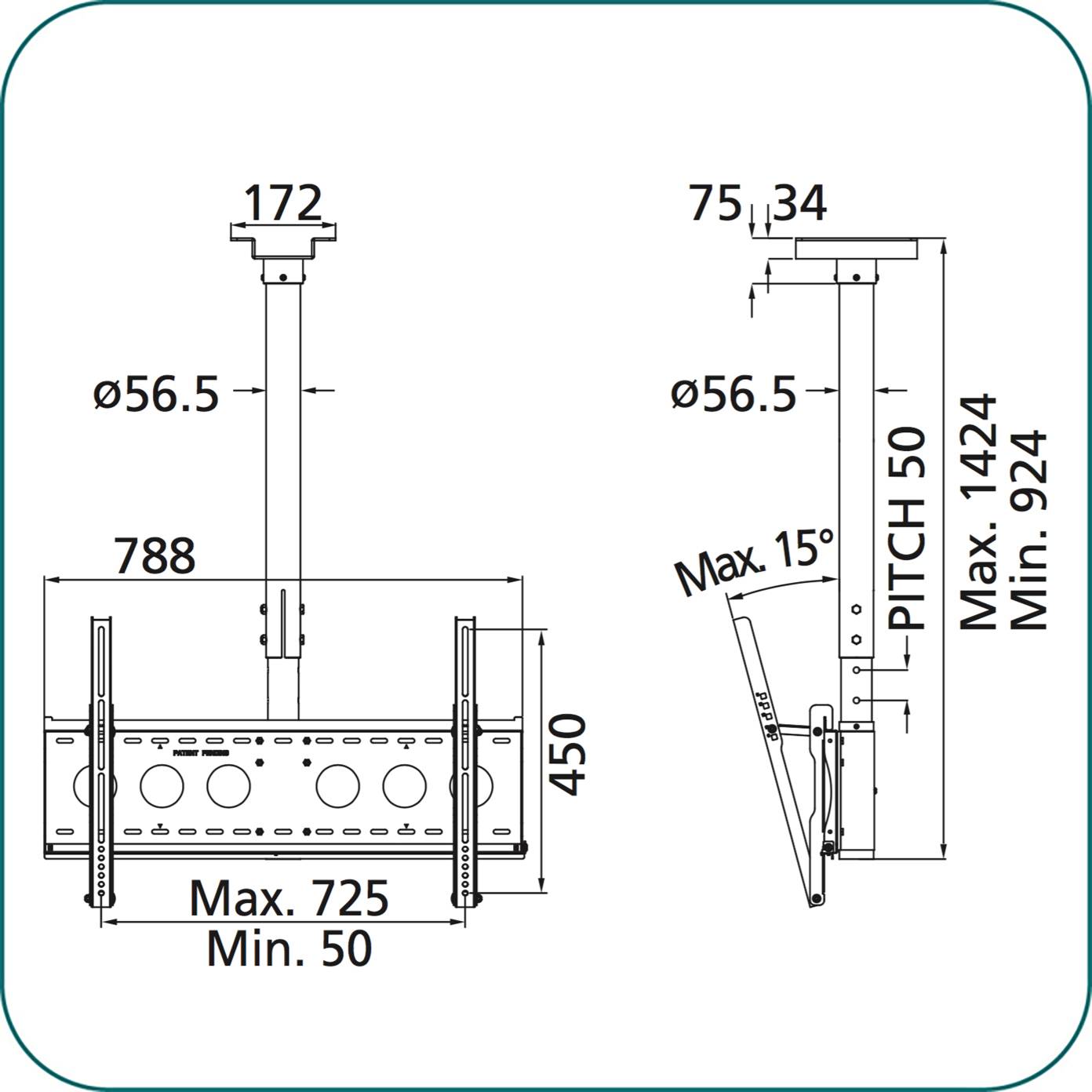

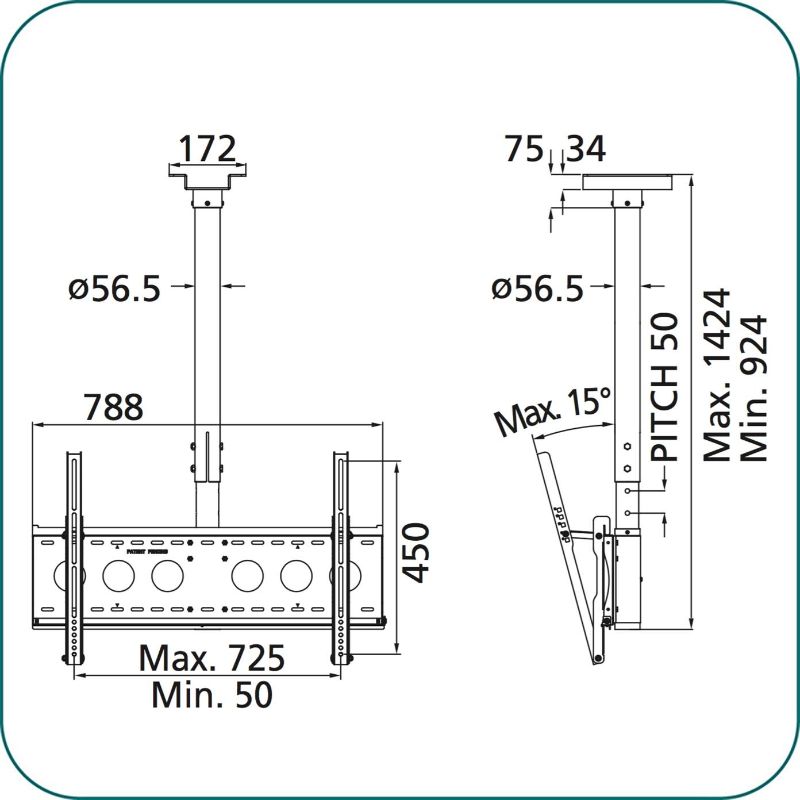

• Max. Mounting:725x450mm

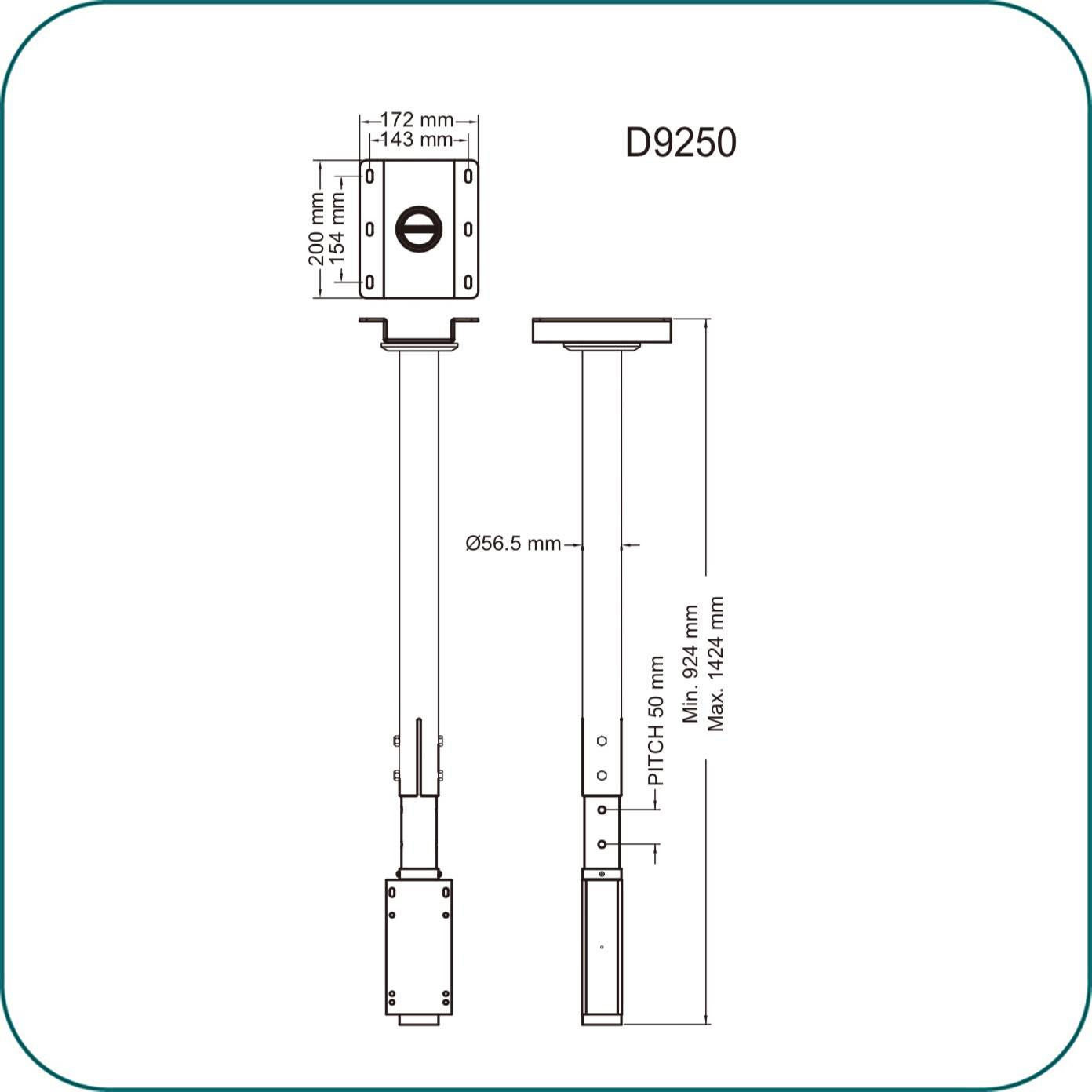

• Height Adjustment:924mm~1,424mm in 50mm increments
• Screw Type:M8, M6, M5, M4
• Tube Rotation:360 degree
• Material:Steel
