PL320

Projector Mount - Ceiling Type

   PL320 is an innovative projector hanger with smart In-Tube Cable management system which fulfills the commercial installation demand, tiny and professional.

It supports load capacity up to 15kg/33lbs, 360 degree rotation, +/- 25 degree tilt and compatible with Diameter 325mm. it features a QUICK Attach and Detach function. Adjustable tube length 402.7~577.7mm, optional extended tube available.

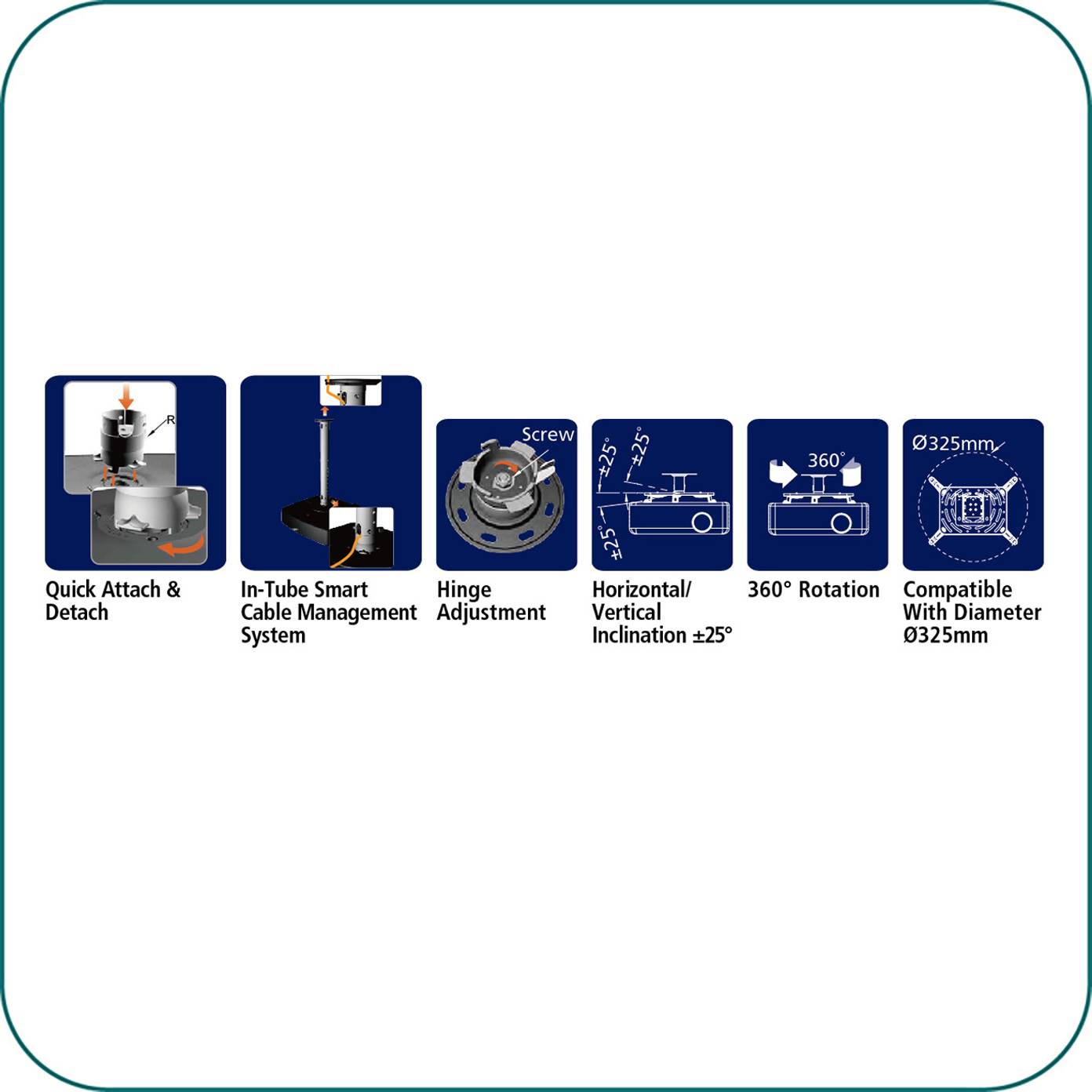

FEATURES

• Designed for all Makes of Ceiling Type Projectors
• Quick Attach and Detach function

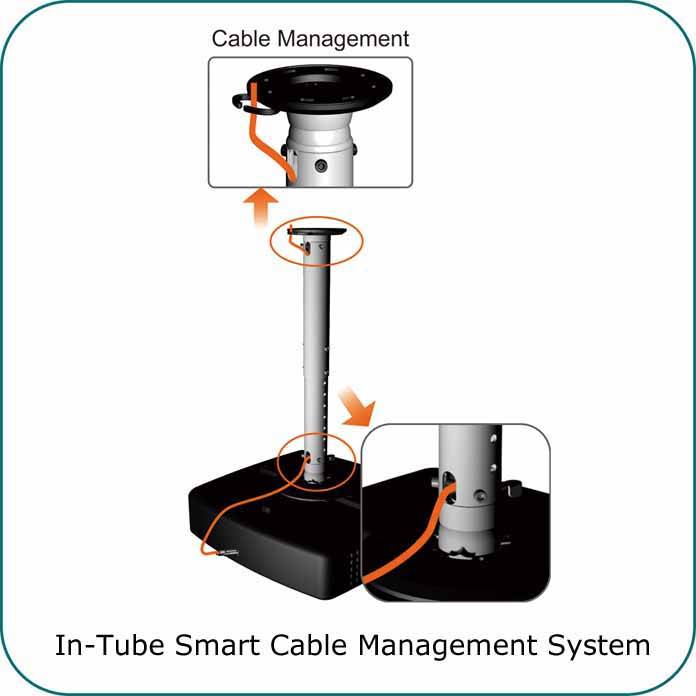

• In-Tube Smart Cable Management System
• Horizontal/ Vertical Inclination +/- 25 Degree
• Compatible with Diameter Ø325mm
• Max. Distance To Ceiling 577.7mm /22.74"

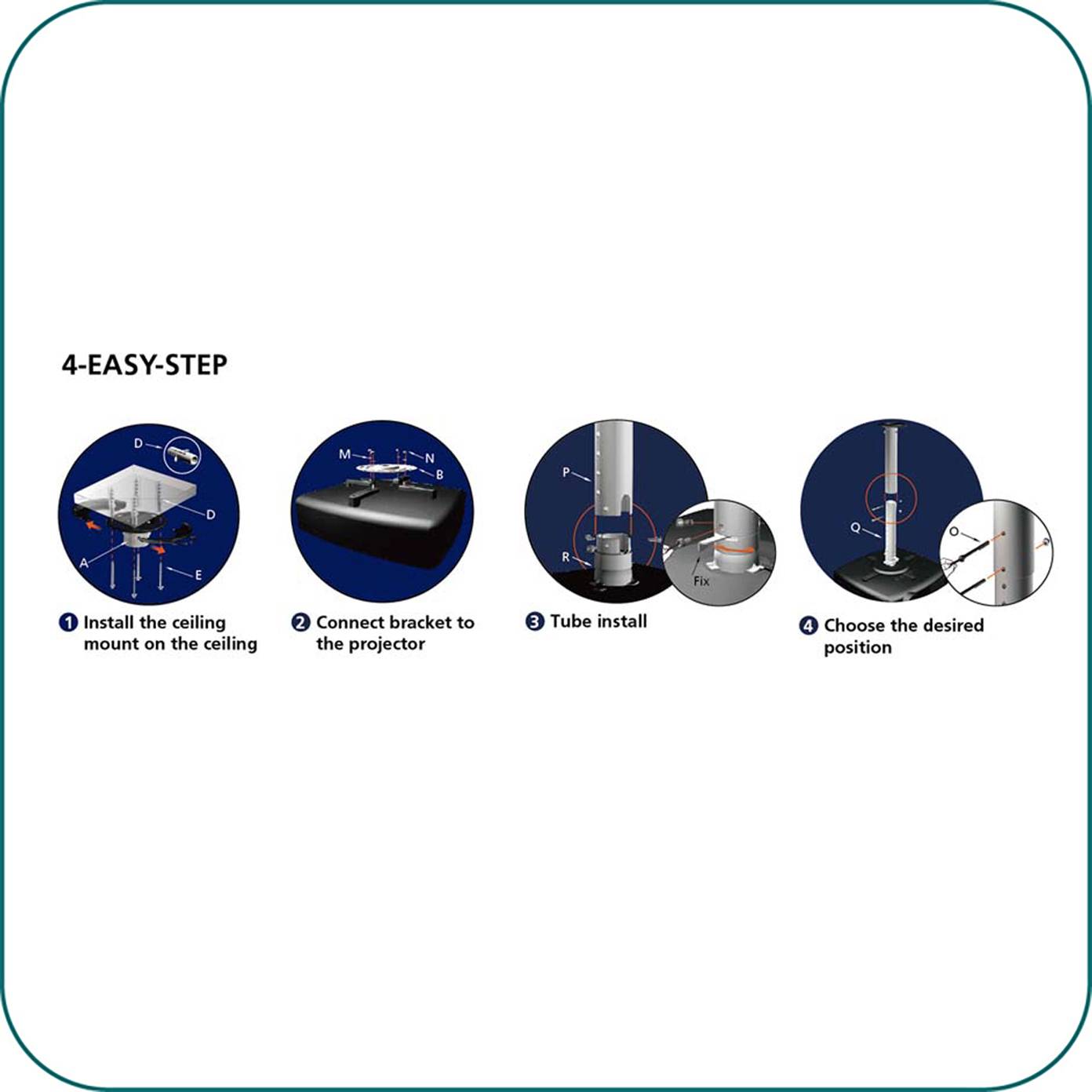

• Easy to Install
• Extended tube(optional accessory)- PT400

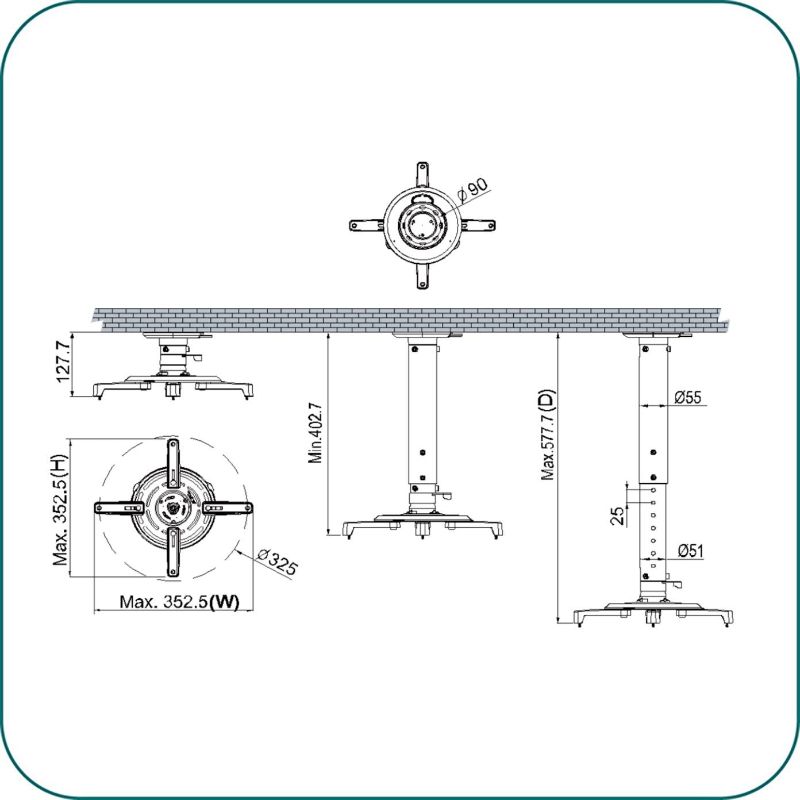

SPECS.

• Load Capacity:15kg /33.1lbs
• Mounting Pattern:Diameter Ø325 mm
• Dimension:352.5 x 352.5 x 577.7 mm /13.88" x 13.88" x 24.74"
• Material:Steel/Aluminum Alloy/Plastic
• Gross Weight: 1.72 kg /3.79lbs
• Screw Type:M3,M4,M5,M6
• Vertical & Horizontal Tilt:+/-25°
• Swivel:360°
• Max. Distance To Ceiling:577.7mm /22.74"
• Min. Distance To Ceiling: 127.7mm /5.03"
• Smart Cable Management: Yes
