PL320R-NEW

Projector Mount - supported inclined ceiling

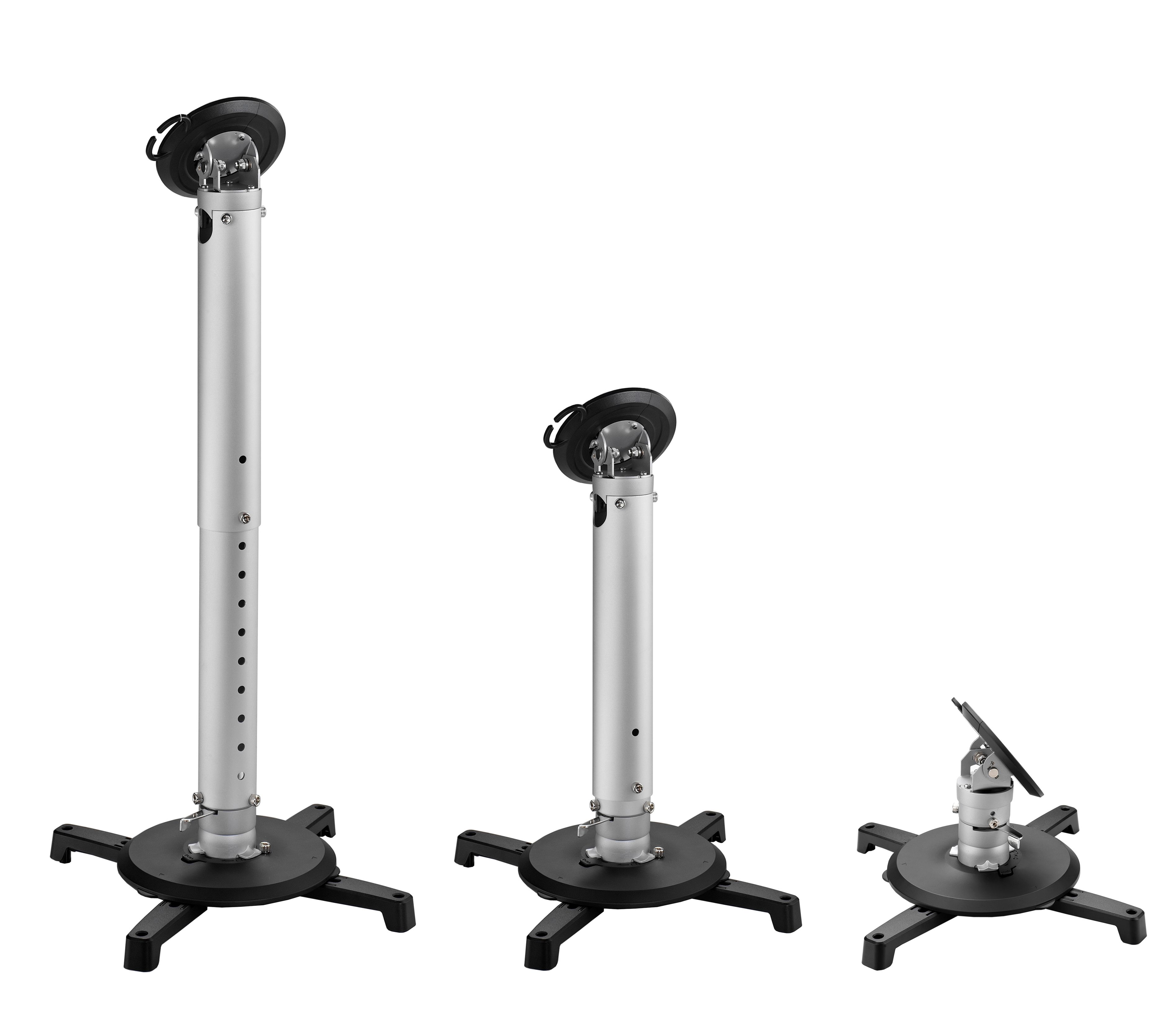

   PL320R is an innovative projector hanger with smart In-Tube Cable management system which fulfills the commercial installation demand, tiny and professional.

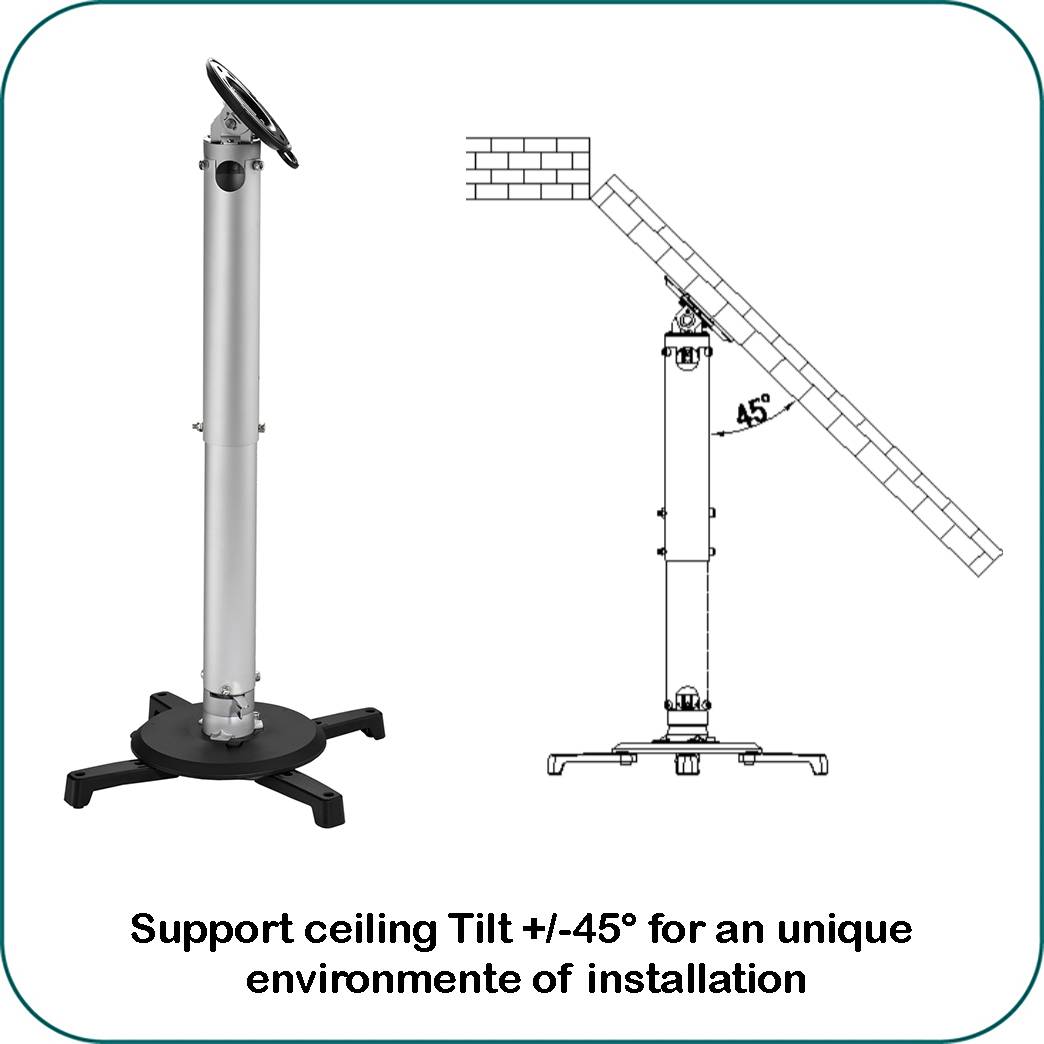

It fulfills ceiling tilt angle +/-45° when it's necessary to install in an unique environmente with inclined roof/ ceiling. Support Load capacity up to 25kg/55lbs, 360 degree rotation, +/- 25 degree tilt and compatible with Diameter 325mm. it features a QUICK Attach and Detach function. Adjustable tube length 163.7~613.7mm.

FEATURES

• Designed for all Makes of Ceiling Type Projectors
NEW Feature: Support Inclined Ceiling with tilt angle +/-45°
• Quick Attach and Detach function
• In-Tube Smart Cable Management System
• Horizontal/ Vertical Inclination +/- 25 Degree
• Compatible with Diameter Ø325mm (12.8'')
• Max. Distance to Ceiling 613.7mm /24.16"
• Min. Distance to display 163.7mm /6.1"
• Easy to Install

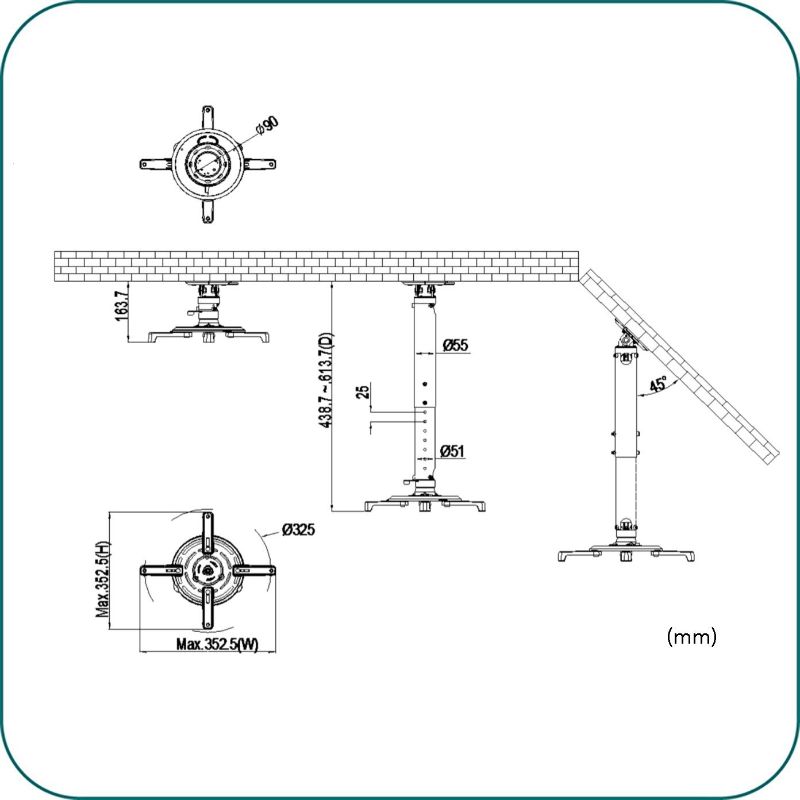

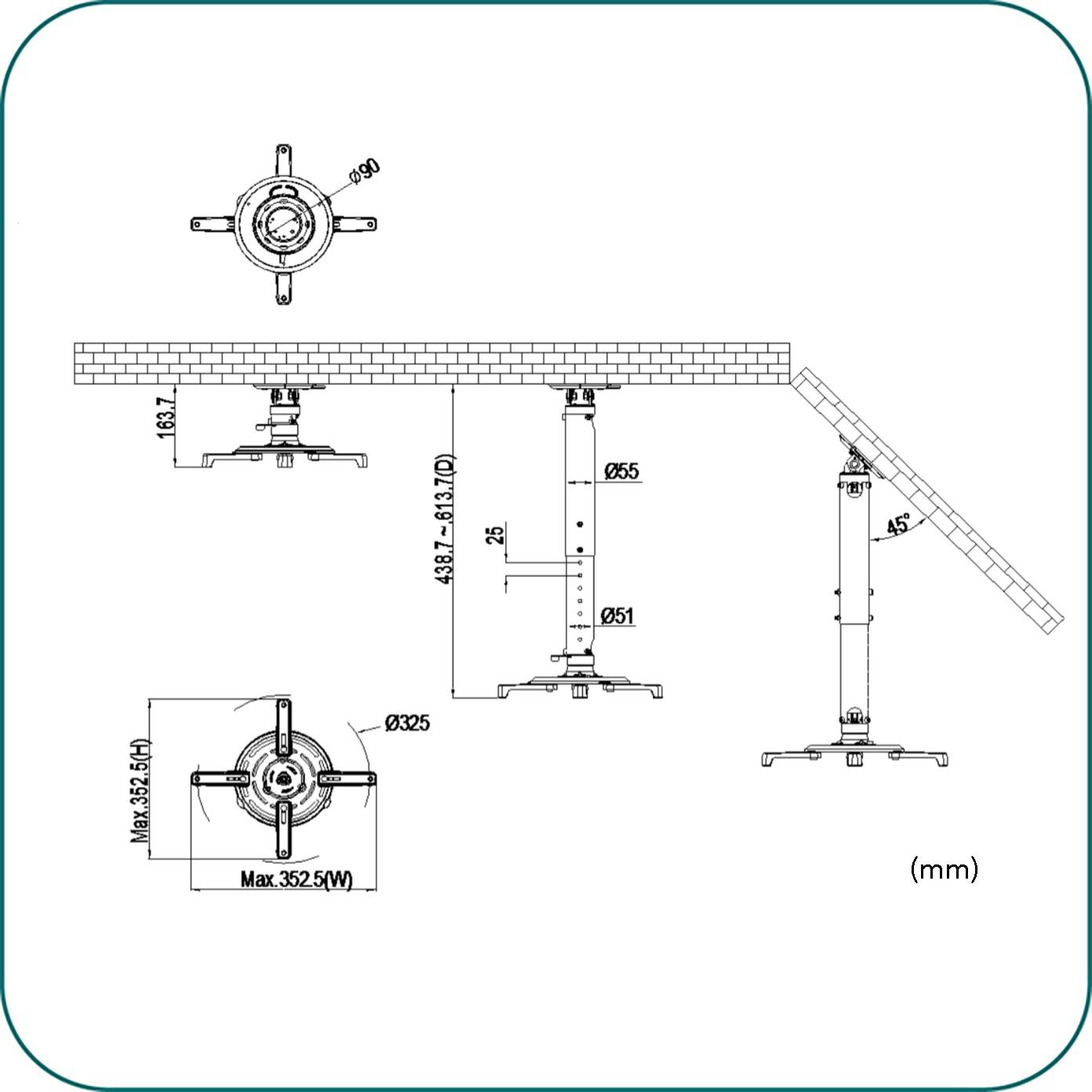

SPECS.

• Load Capacity:25kg /55lbs
• Mounting Pattern:Diameter Ø325 mm
• Dimension:352.5 x 352.5 x 613.7 mm
• Support Inclined Ceiling with tilt angle +/-45°
• Material:Steel/Aluminum Alloy/Plastic
• Gross Weight: 1.2 kg /4.23lbs
• Screw Type:M3,M4,M5,M6
• Vertical & Horizontal Tilt:+/-25°
• Swivel:360°
• Max. Distance To Ceiling:613.7mm /24.16"
• Min. Distance To display: 163.7mm/6.44"
• Smart Cable Management: Yes
