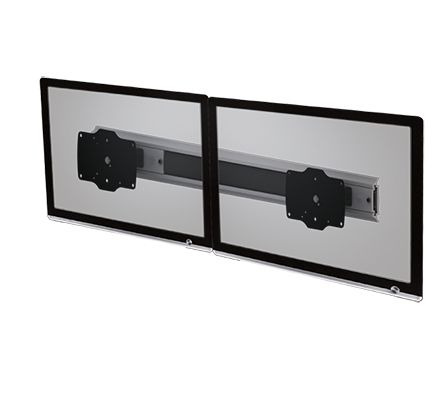

Aavara® Easy-To-Install Mounting Column System makes DOOH (Digital Out Of Home) simple and flexible, various alignments to fulfill broad Digital Signage applications.
V8822 supports 24~32 inch display x2, with tilt +/-15°and swivel angle +/-20°, rotation 360°, VESA 200x100mm. ExperTorque™ technology enables adjustment of the screens hinged by its weight.
Smart cable management keeps cables in good order.
• Full Motion Mounting Column System for Video Wall
• Tilt +/- 15° Swivel Angle +/- 20°
• Rotation:360°
• Smart Cable Management System
• Max. Mounting 200x100/100x100mm

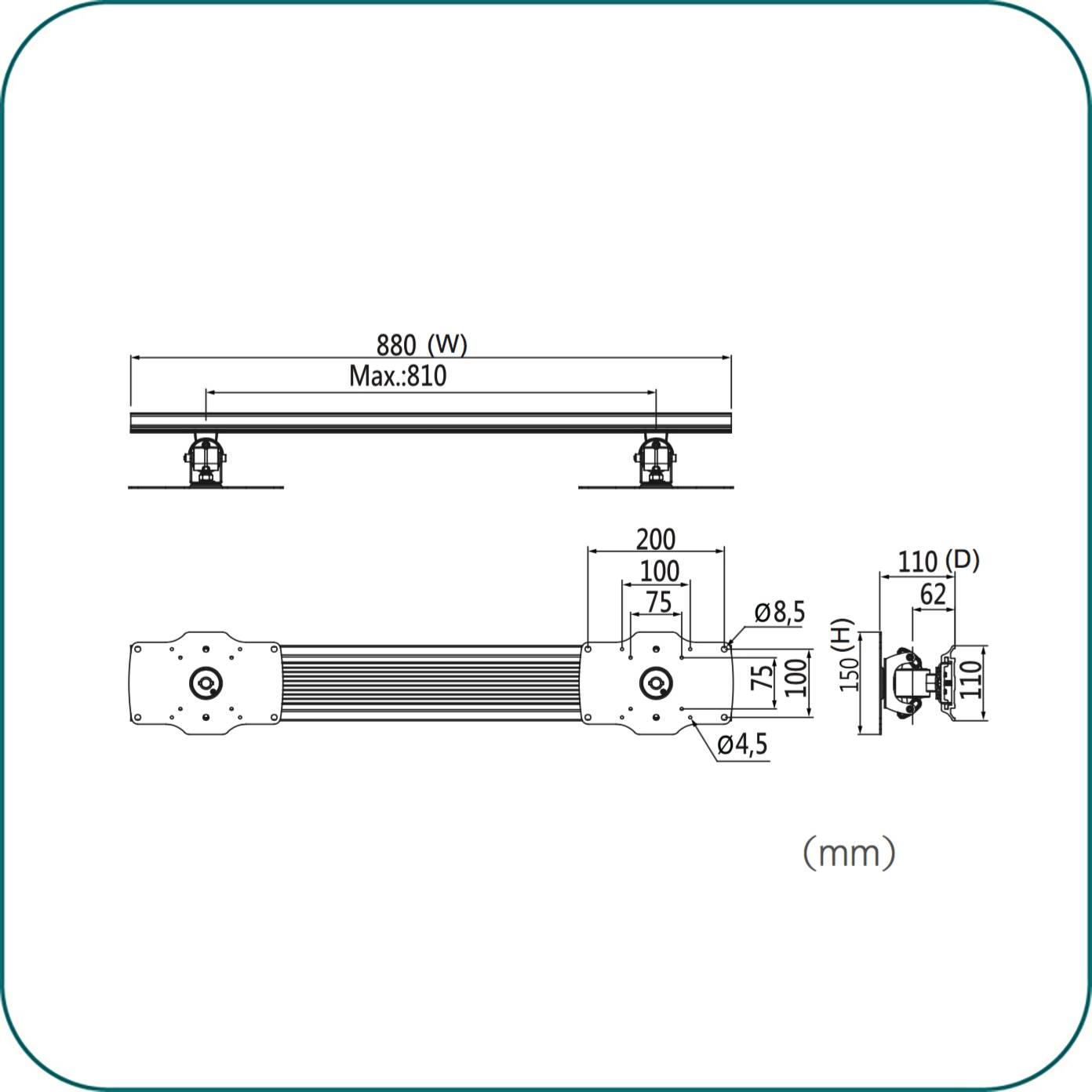

• Max. Distance To The Wall 111mm /4.37"
• ExperTorque ™ Technology For Easy Adjustment
• Flat Panel Size:24"~32"/ 61-81.3cm
• Loading Capacity:25Kg /55.1lbs
• Tilt Angle: +/-15°
• Swivel Angle: +/-20°
• Rotation:360°
• Smart Cable Management:Yes
• Screw Type:M 8,6,5,4
• ExporTorque™:ExperTorque™ design for easy adjustment hinged by monitor weight
• Max. Mounting:200x100/100x100mm
• Material:Steel/ Aluminum Alloy
